bambuddy

Bambuddy

Self-hosted print archive and management system for Bambu Lab 3D printers

Features • Screenshots • Quick Start • Documentation • Discord • Contributing

---

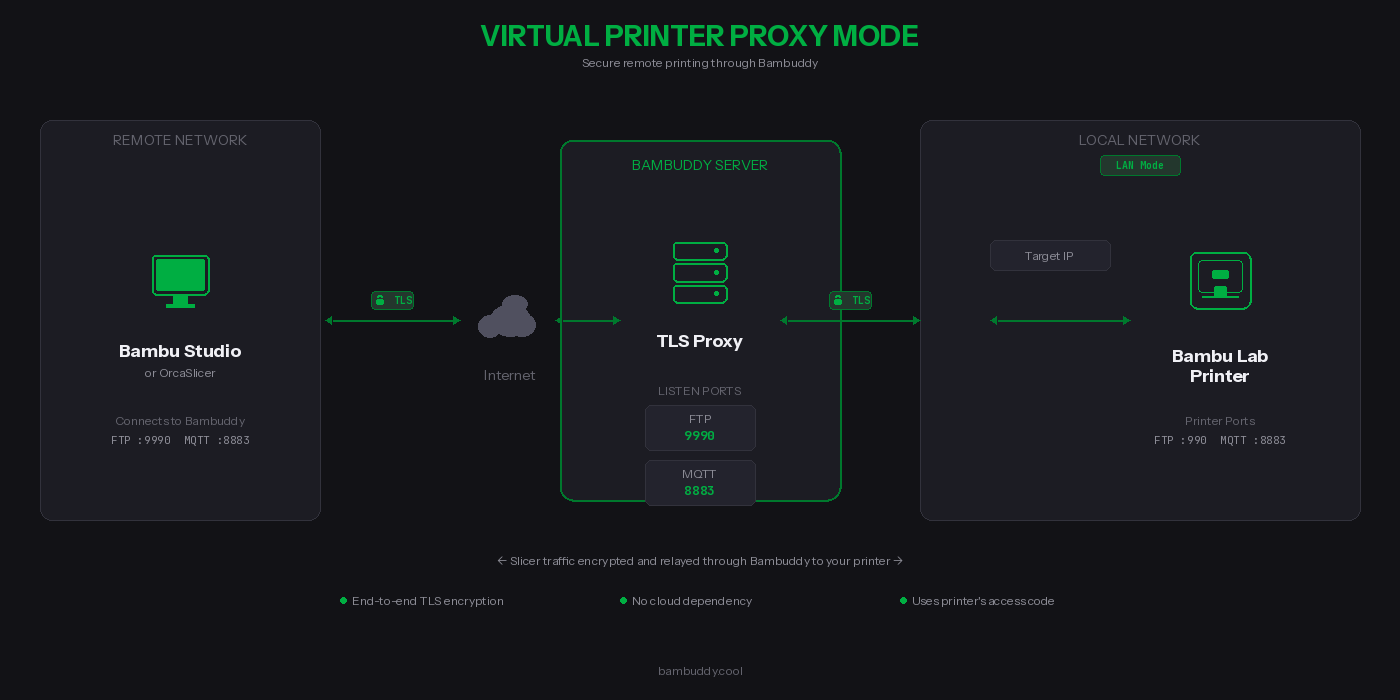

🌐 NEW: Remote Printing with Proxy Mode

Print from anywhere in the world — Bambuddy's new Proxy Mode acts as a secure relay between your slicer and printer:

• 🔒 End-to-end TLS encryption — Your print data is encrypted from slicer to printer
• 🌍 No cloud dependency — Direct connection through your own Bambuddy server
• 🔑 Uses printer's access code — No additional credentials needed
• ⚡ Full-speed printing — FTP and MQTT protocols proxied transparently

Perfect for remote print farms, traveling makers, or accessing your home printer from work.

👉 Setup Guide →

---

Testers Needed! I only have X1C and H2D devices. Help make Bambuddy work with all Bambu Lab printers by reporting your experience!

Why Bambuddy?

• Own your data — All print history stored locally, no cloud dependency
• Works offline — Uses Developer Mode for direct printer control via local network
• Full automation — Schedule prints, auto power-off, get notified when done
• Multi-printer support — Manage your entire print farm from one interface

---

✨ Features

### 📦 Print Archive - Automatic 3MF archiving with metadata - 3D model preview (Three.js) - Duplicate detection & full-text search - Photo attachments & failure analysis - Timelapse editor (trim, speed, music) - Re-print to any connected printer with AMS mapping (auto-match or manual slot selection, multi-plate support) - Plate thumbnail browsing for multi-plate archives (hover to navigate between plates) - Archive comparison (side-by-side diff) - Tag management (rename/delete across all archives) ### 📊 Monitoring & Control - Real-time printer status via WebSocket - Live camera streaming (MJPEG) & snapshots with multi-viewer support - **Streaming overlay for OBS** - Embeddable page with camera + status for live streaming (`/overlay/:printerId`), configurable FPS (`?fps=30`), status-only mode (`?camera=false`) - External camera support (MJPEG, RTSP, HTTP snapshot, USB/V4L2) with layer-based timelapse - **Build plate empty detection** - Auto-pause print if objects detected on plate (multi-reference calibration, ROI adjustment) - Fan status monitoring (part cooling, auxiliary, chamber) - Printer control (stop, pause, resume, chamber light) - Resizable printer cards (S/M/L/XL) - Skip objects during print - AMS slot RFID re-read - AMS slot configuration (custom presets, K profiles, color picker) - HMS error monitoring with history - Print success rates & trends - Filament usage tracking - Cost analytics & failure analysis - CSV/Excel export ### ⏰ Scheduling & Automation - Print queue with drag-and-drop - Multi-printer selection (send to multiple printers at once) - Model-based queue assignment (send to "any X1C" for load balancing) with location filtering - Filament validation (only assign to printers with required filaments) - Per-printer AMS mapping (individual slot configuration for print farms) - Scheduled prints (date/time) - Queue Only mode (stage without auto-start) - Smart plug integration (Tasmota, Home Assistant, MQTT) - MQTT smart plugs: Subscribe to Zigbee2MQTT, Shelly, or any MQTT topic for energy monitoring - Energy consumption tracking (per-print kWh and cost) - HA energy sensor support (for plugs with separate power/energy sensors) - Auto power-on before print - Auto power-off after cooldown ### 📁 File Manager (Library) - Upload and organize sliced files (3MF, gcode, STL) - **STL thumbnail generation** - Auto-generate previews for STL files on upload or batch generate for existing files - ZIP file extraction with folder structure preservation - Option to create folder from ZIP filename - Folder structure with drag-and-drop - Rename files and folders via context menu - Print directly to any printer with full options - Add to queue without creating archive upfront - Plate selection for multi-plate 3MF files - Duplicate detection via file hash - Mobile-friendly with always-visible action buttons ### 📁 Projects - Group related prints (e.g., "Voron Build") - Track plates (print jobs) and parts separately - Auto-detect parts count from 3MF files - Color-coded project badges - Bulk assign archives via multi-select toolbar - Import/Export projects as ZIP (includes files) or JSON

### 🔔 Notifications - WhatsApp, Telegram, Discord - Email, Pushover, ntfy - Custom webhooks - Quiet hours & daily digest - Customizable message templates - Print finish photo URL in notifications - HMS error alerts (AMS, nozzle, etc.) - Build plate detection alerts - Queue events (waiting, skipped, failed) ### 🔧 Integrations - [Spoolman](https://github.com/Donkie/Spoolman) filament sync - MQTT publishing for Home Assistant, Node-RED, etc. - **Prometheus metrics** - Export printer telemetry for Grafana dashboards - Bambu Cloud profile management - K-profiles (pressure advance) - **GitHub backup** - Schedule automatic backups of cloud profiles, k profiles and settings to GitHub - External sidebar links - Webhooks & API keys - Interactive API browser with live testing ### 🖨️ Virtual Printer & Remote Printing - **🌐 Proxy Mode (NEW!)** — Print remotely from anywhere via secure TLS relay - Emulates a Bambu Lab printer on your network - Send prints directly from Bambu Studio/Orca Slicer - Configurable printer model (X1C, P1S, A1, H2D, etc.) - Archive mode, Review mode, Queue mode, or Proxy mode - SSDP discovery (appears in slicer automatically) - Secure TLS/MQTT/FTP communication ### 🛠️ Maintenance & Support - Maintenance scheduling & tracking - Interval reminders (hours/days) - Print time accuracy stats - File manager for printer storage - Firmware update helper (LAN-only printers) - Debug logging toggle with live indicator - Live application log viewer with filtering - Support bundle generator (privacy-filtered) ### 🔒 Optional Authentication - Enable/disable authentication any time - Group-based permissions (50+ granular permissions) - Default groups: Administrators, Operators, Viewers - JWT tokens with secure password hashing - Comprehensive API protection (200+ endpoints secured) - User management (create, edit, delete, groups) - User activity tracking (who uploaded archives, library files, queued prints, started prints)

Plus: Customizable themes (style, background, accent) • Mobile responsive • Keyboard shortcuts • Multi-language (EN/DE) • Auto updates • Database backup/restore • System info dashboard

---

📸 Screenshots

Click to expand screenshots

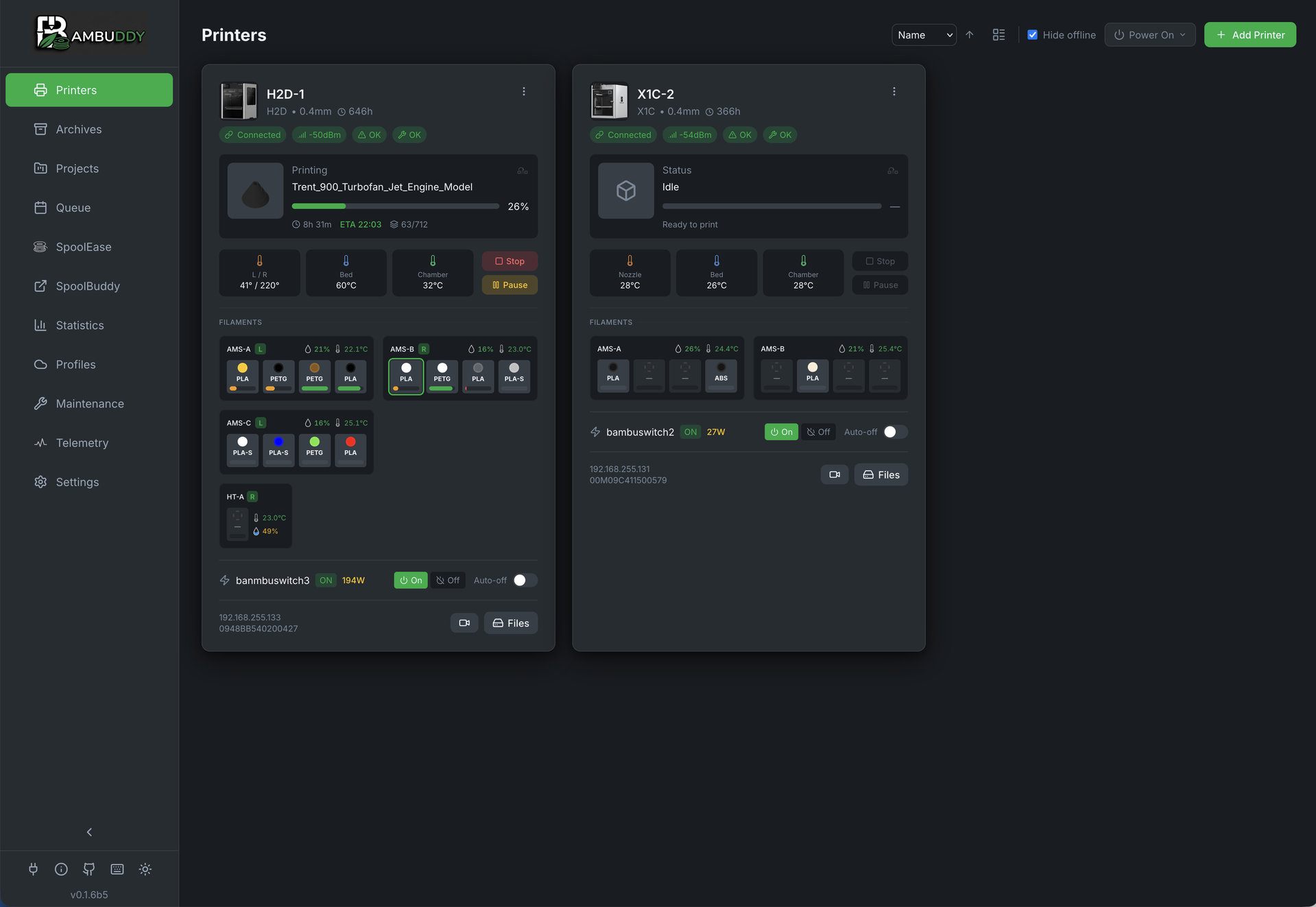

Real-time printer monitoring with AMS status

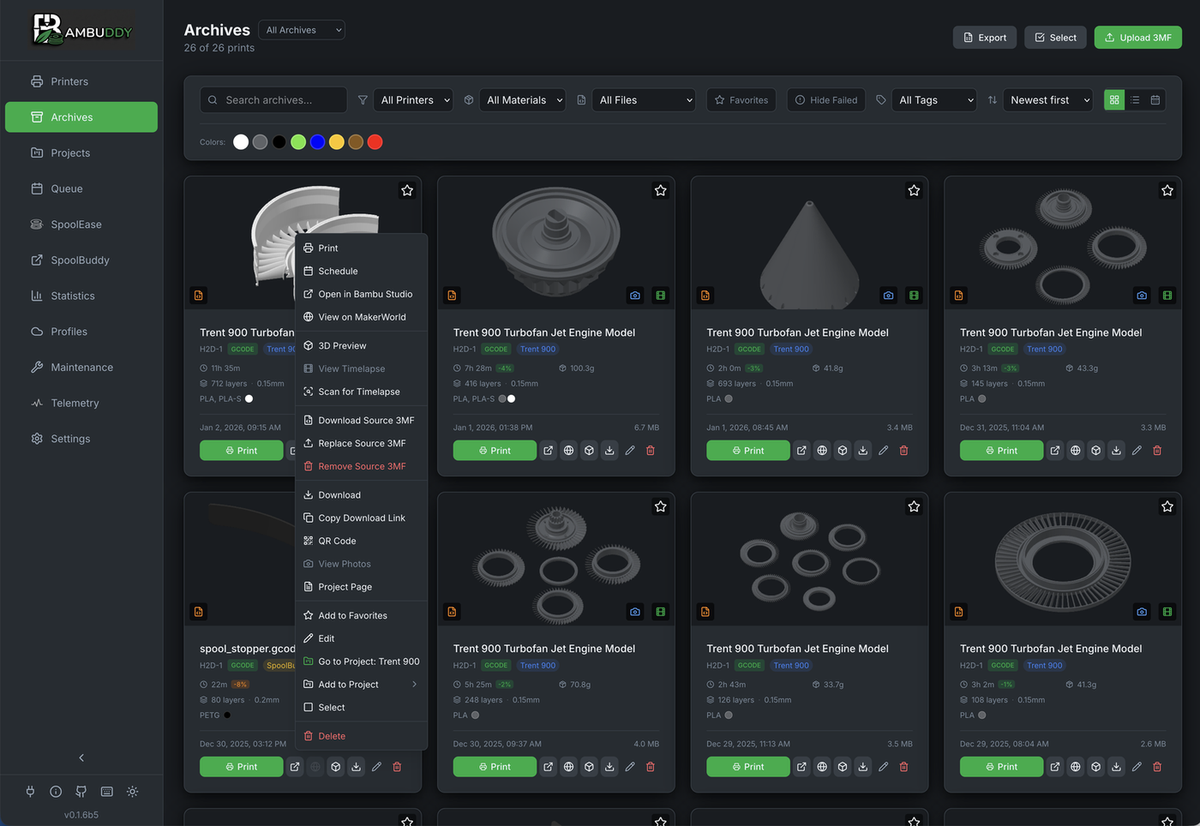

Print archive with 3D preview and project assignment

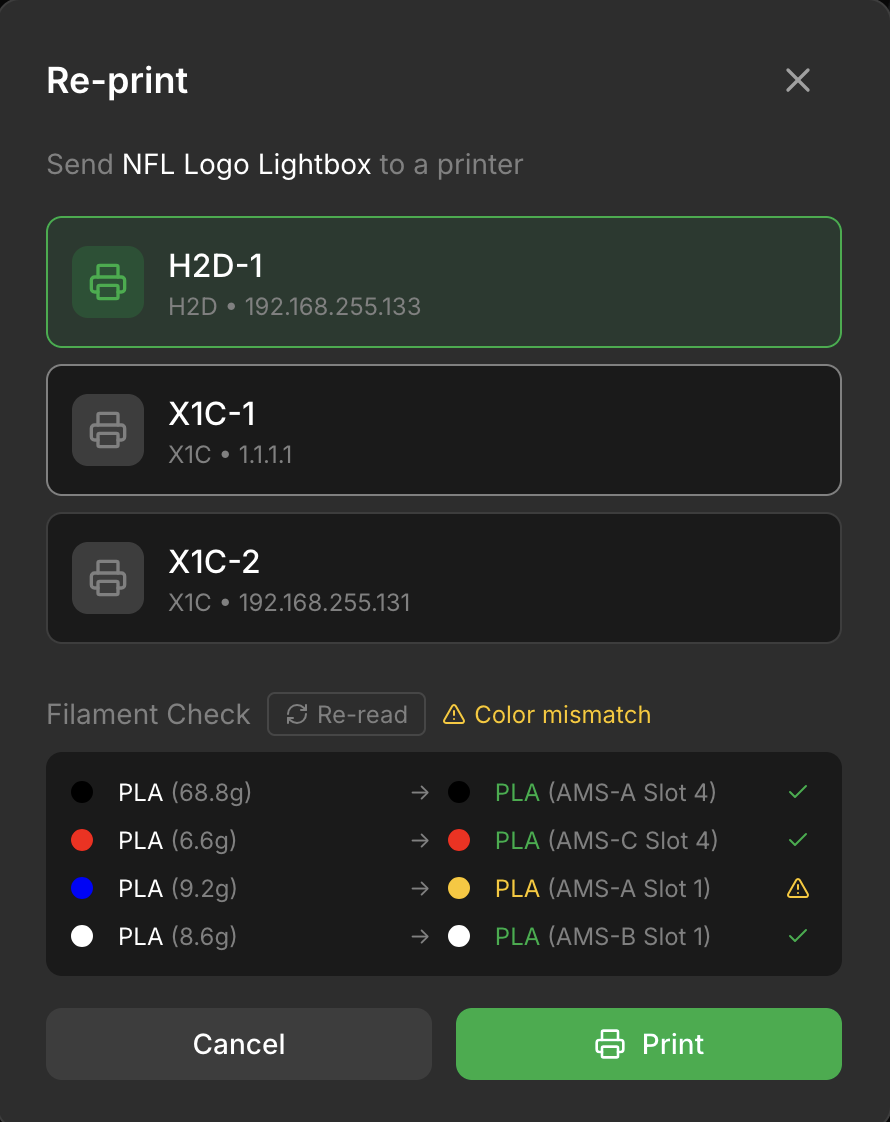

Re-print with AMS filament mapping preview

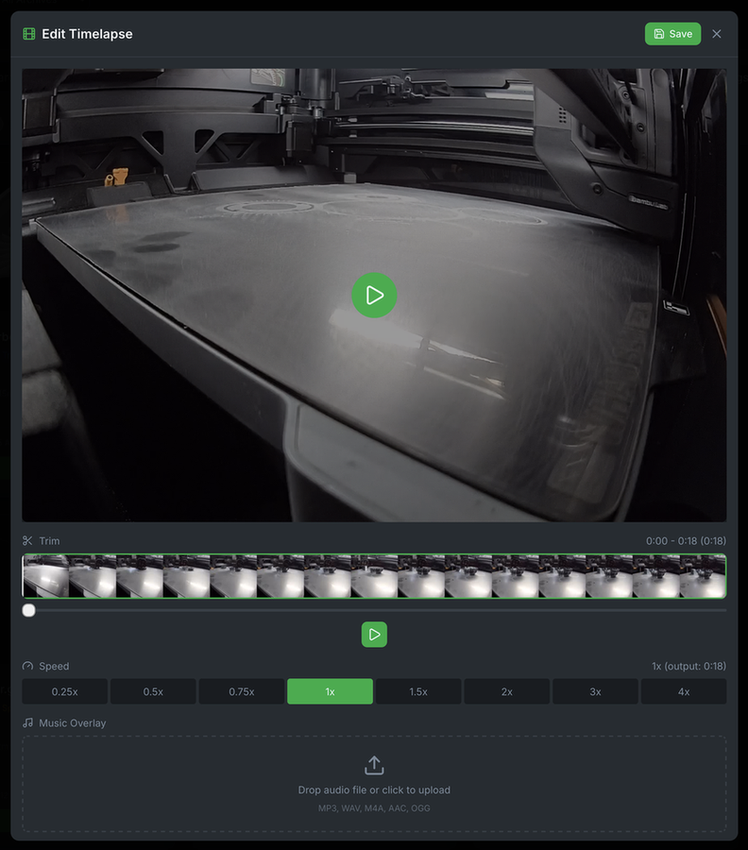

Built-in timelapse editor with trim, speed, and music

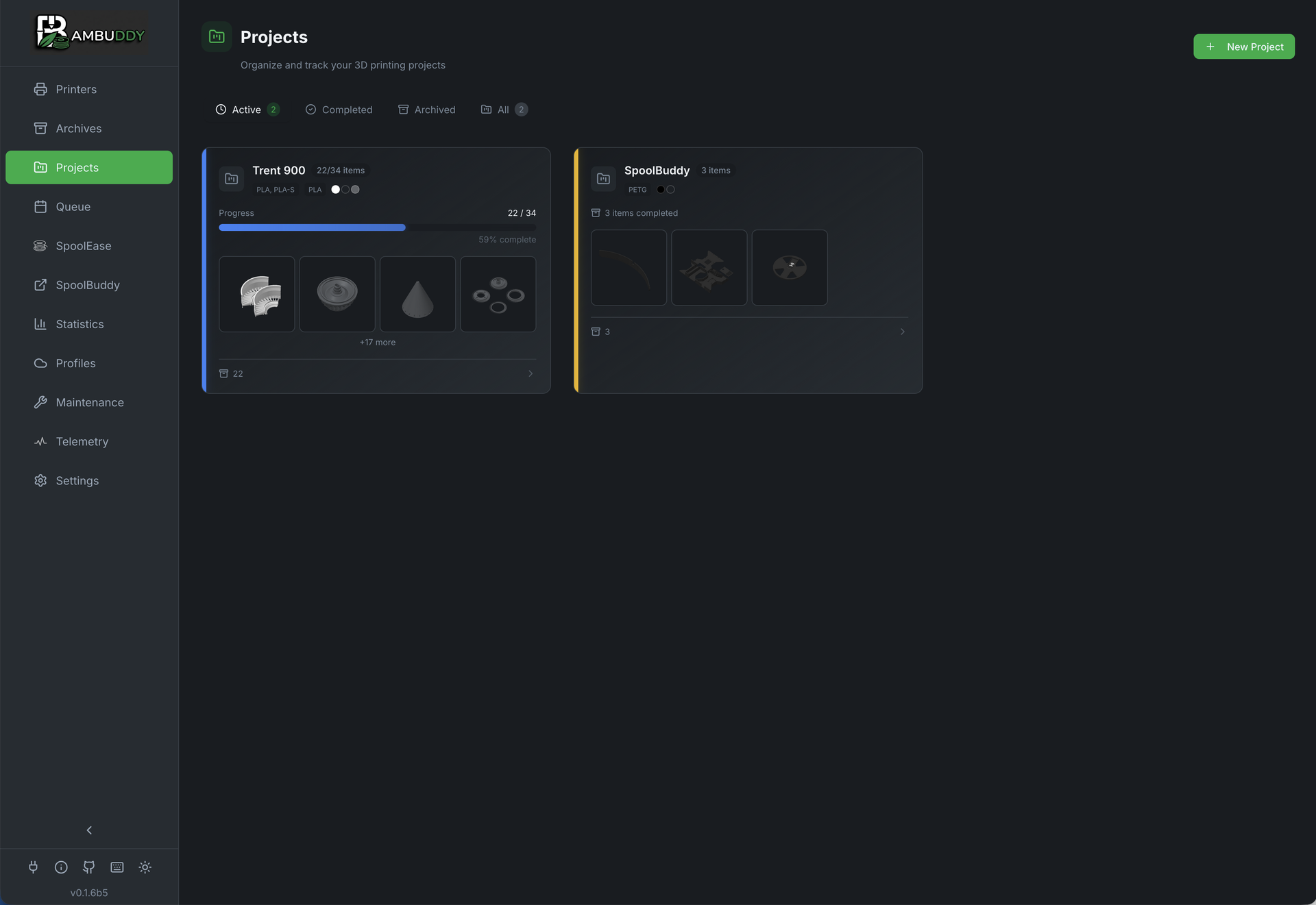

Group related prints into projects

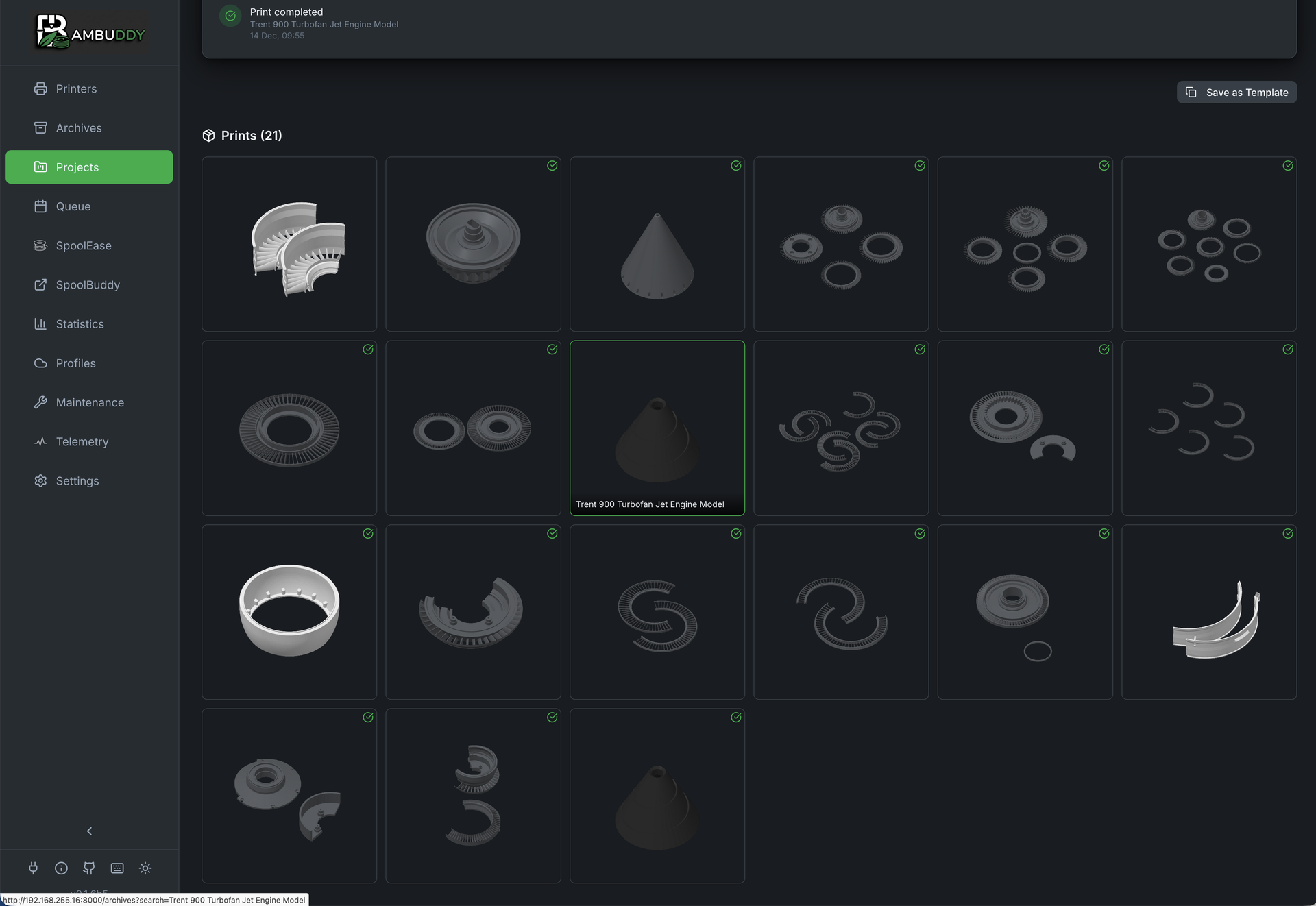

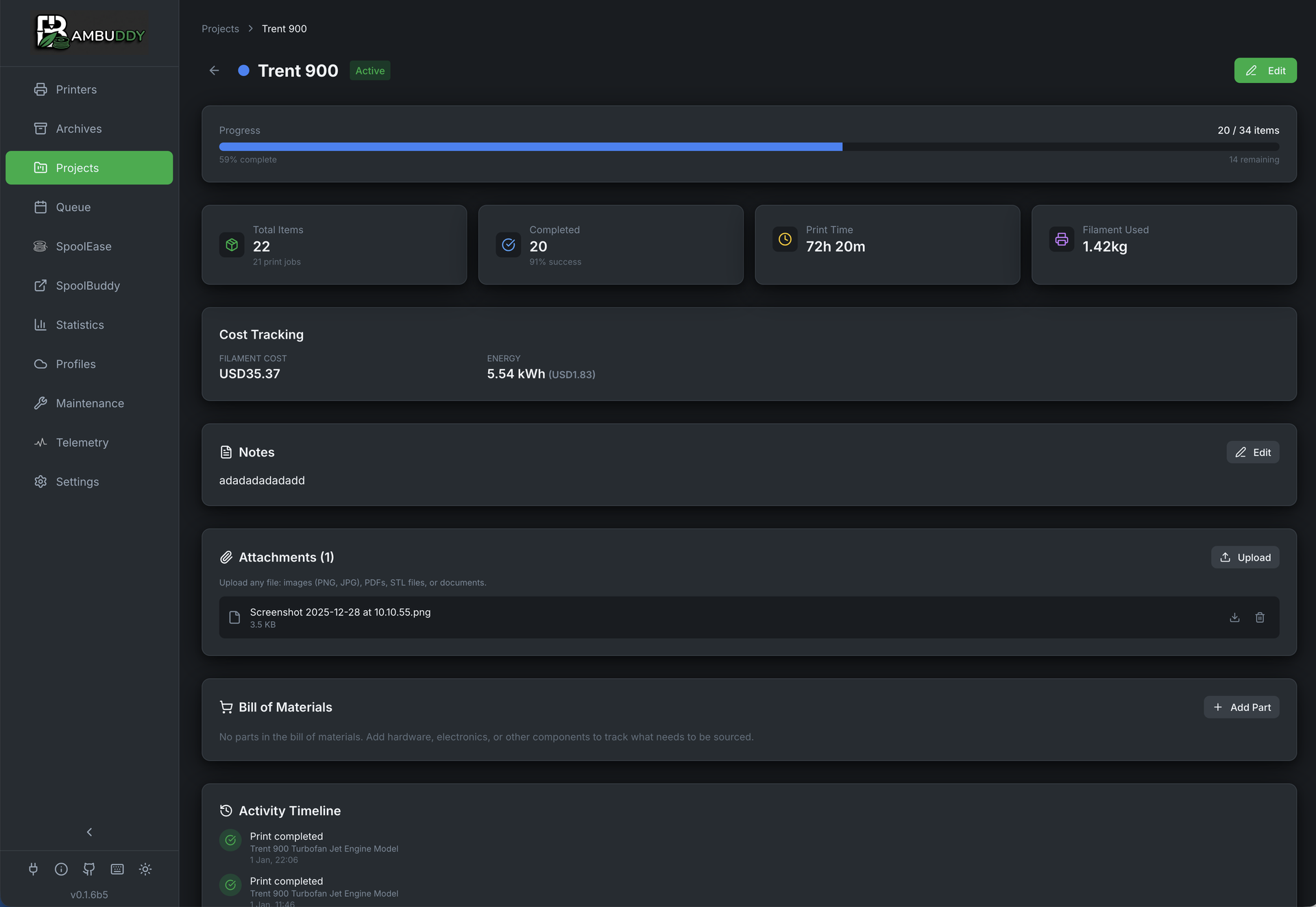

Project detail view with assigned archives

Project timeline and print history

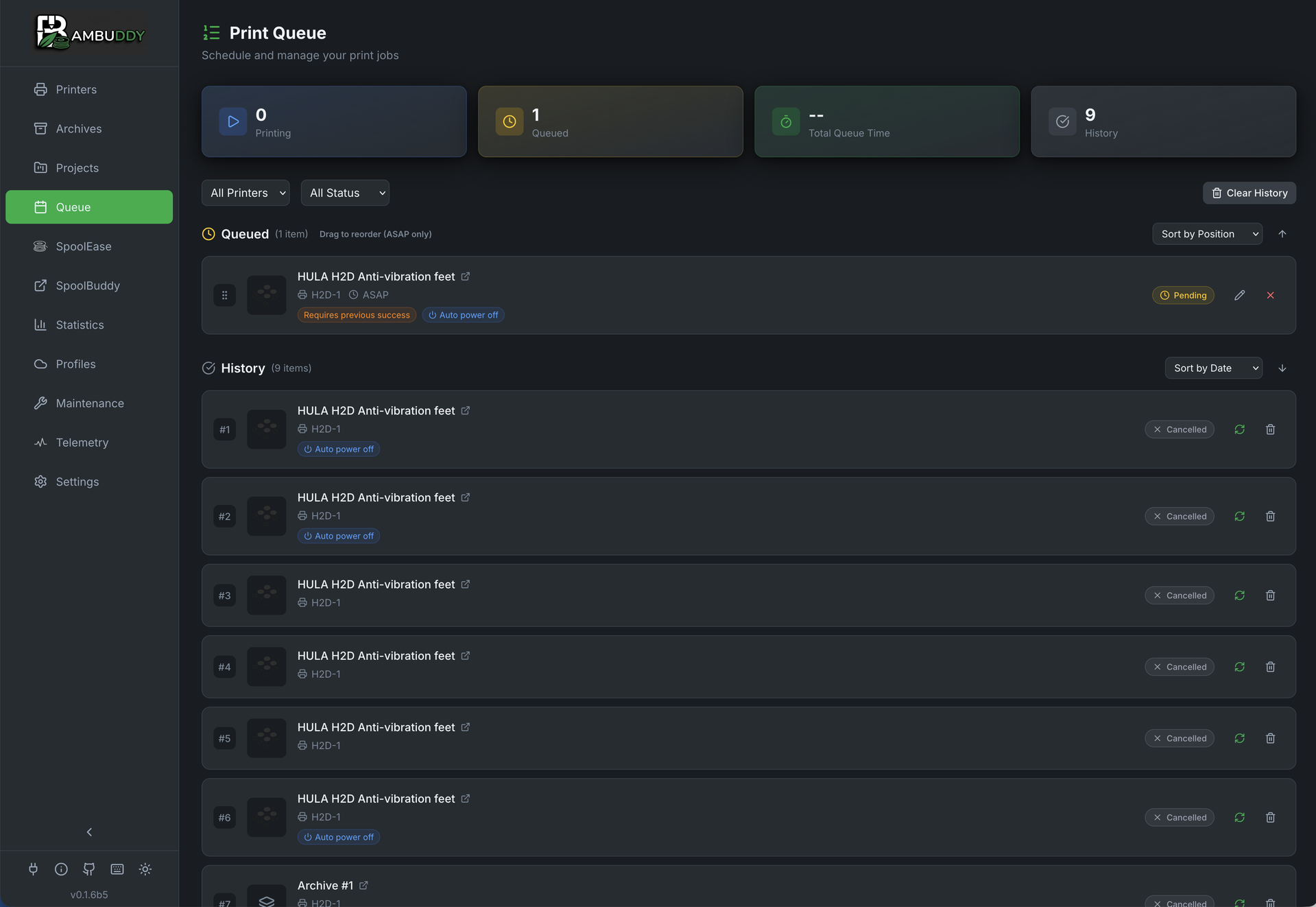

Print scheduling and queue management

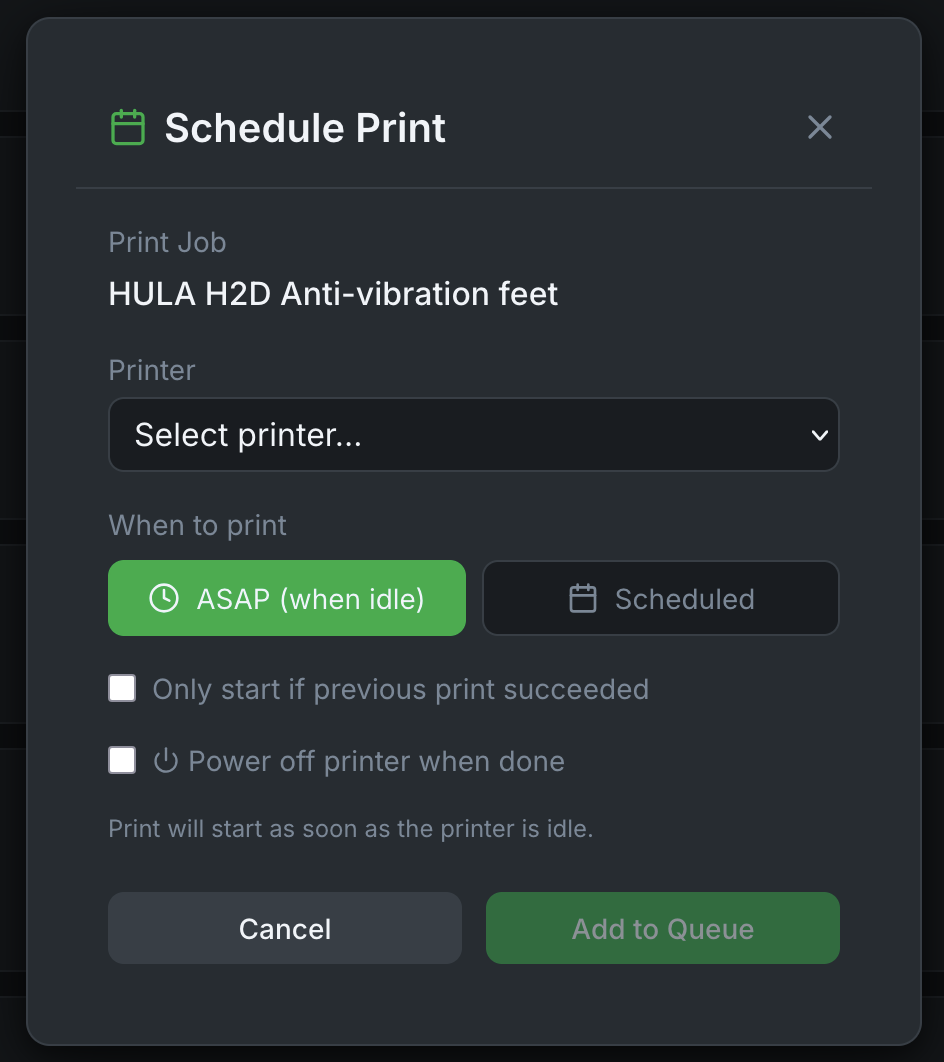

Schedule prints for specific date and time

Customizable statistics dashboard

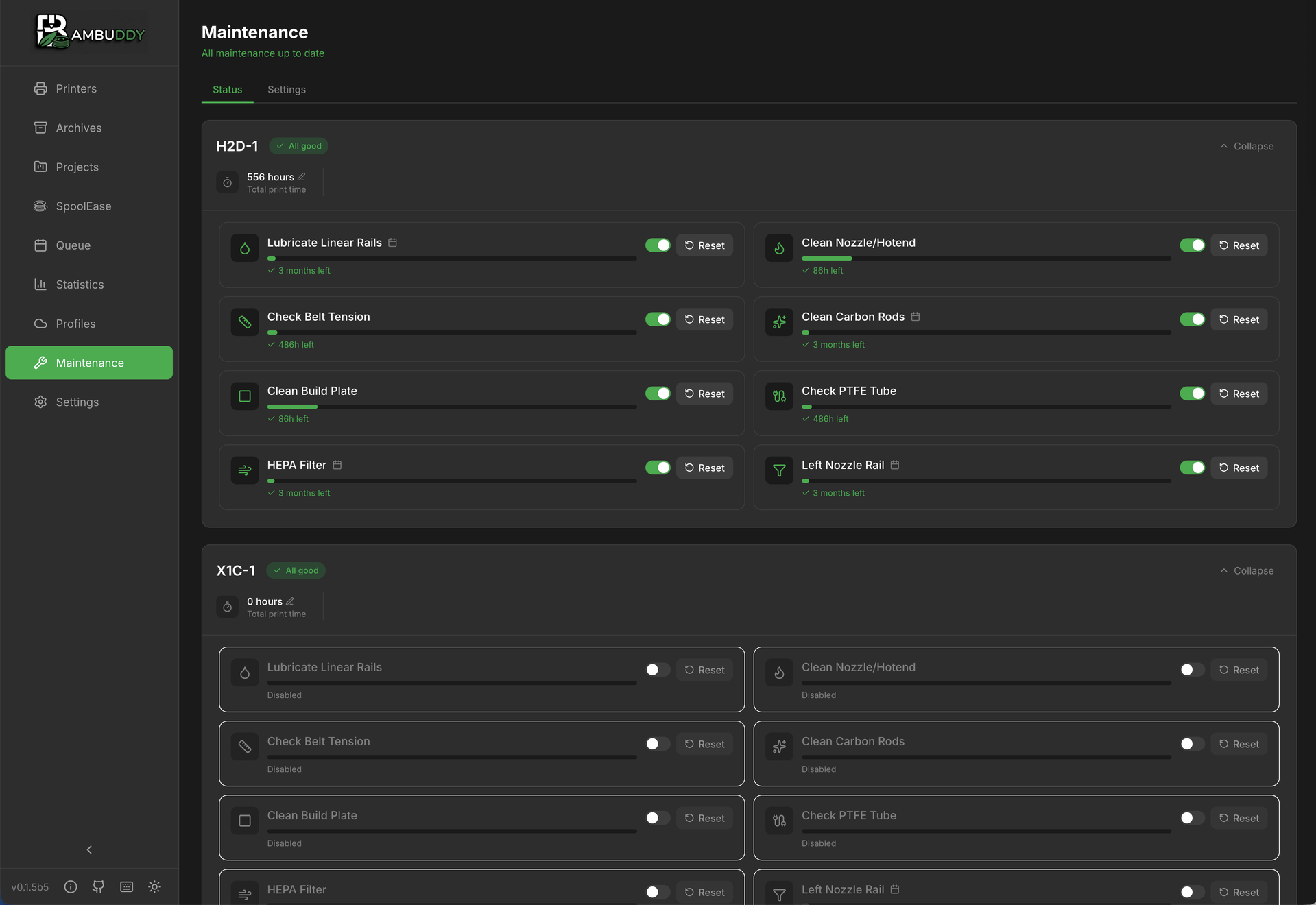

Maintenance tracking per printer

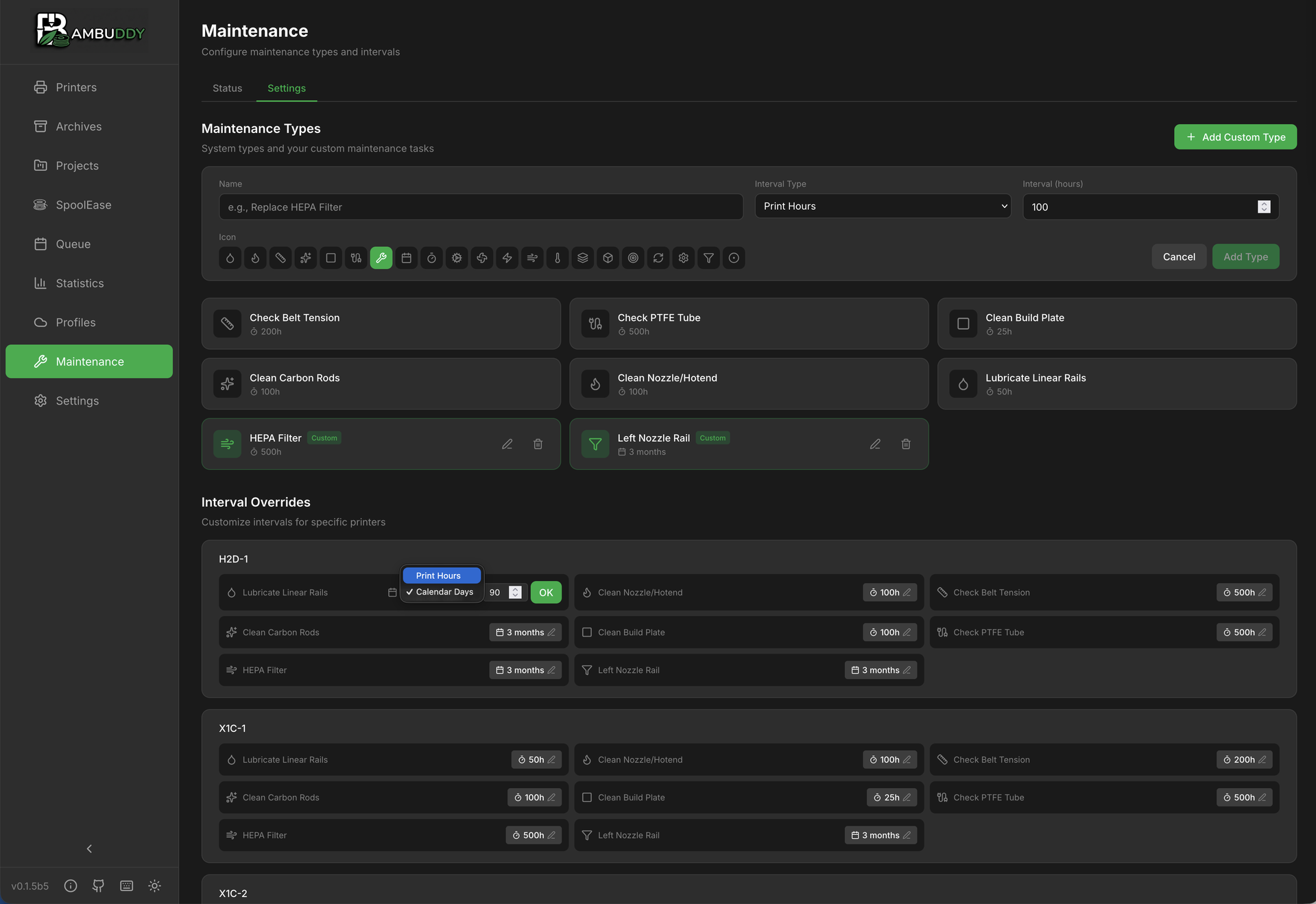

Configure maintenance types and intervals

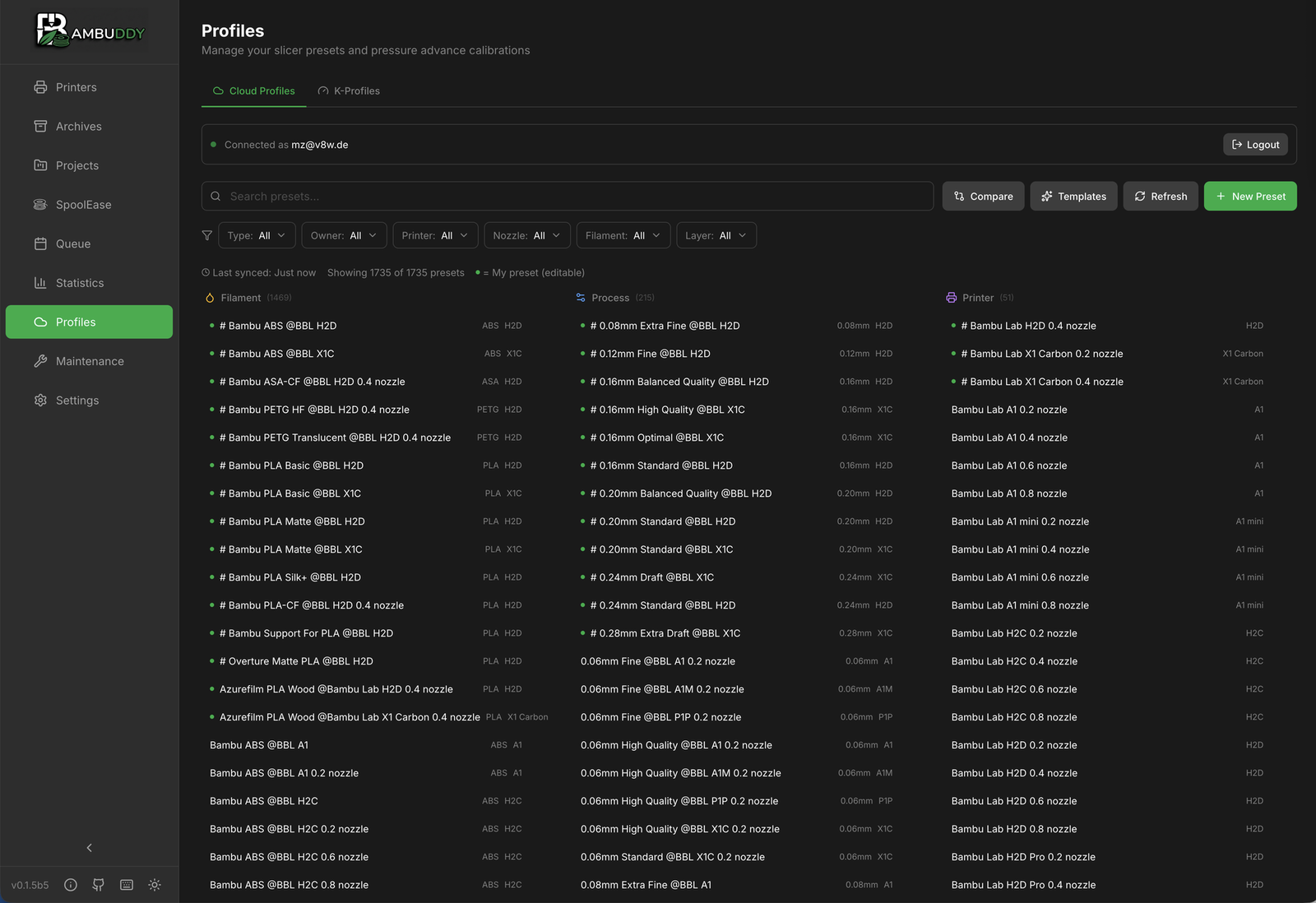

Bambu Cloud filament profiles

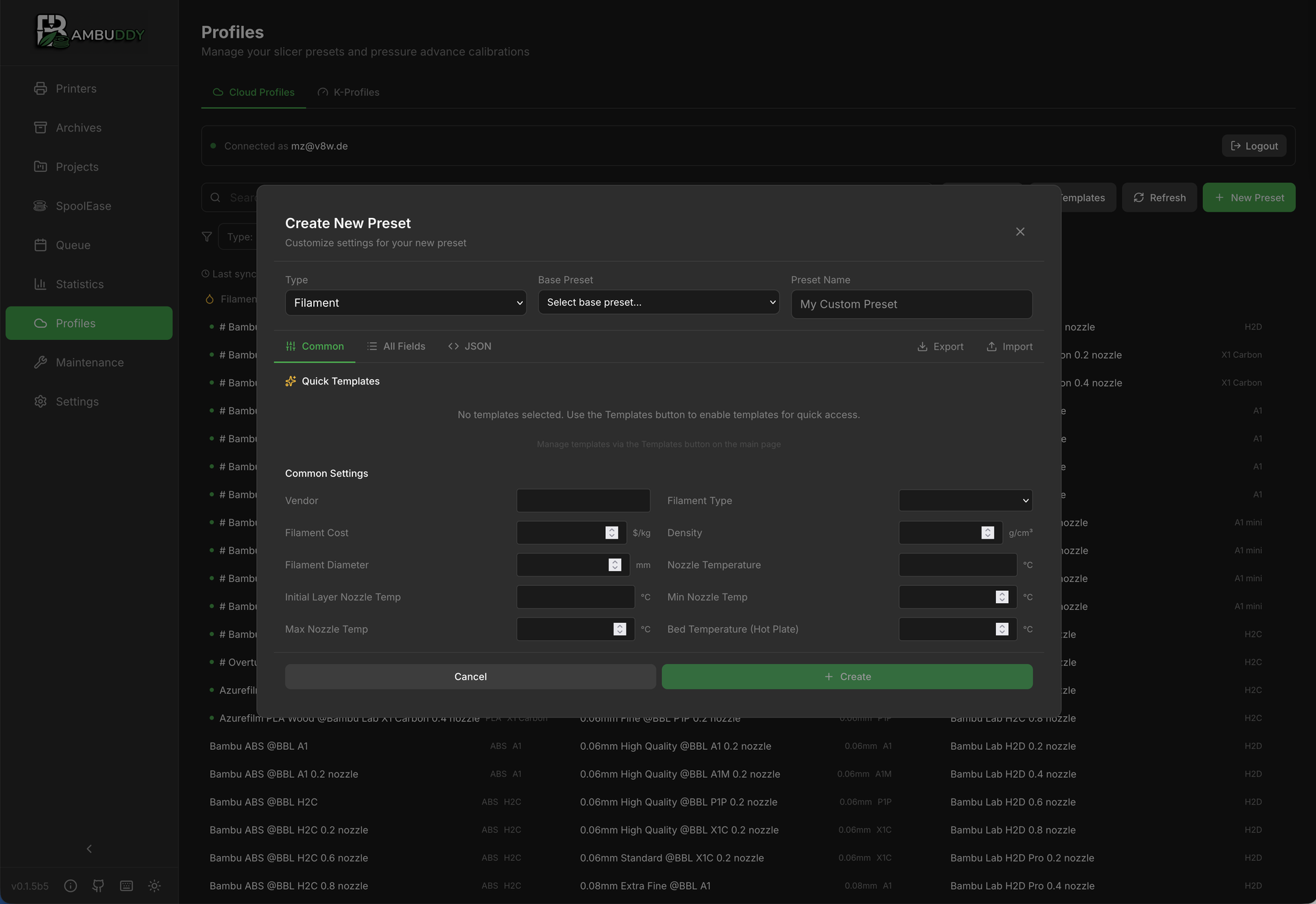

Edit filament preset settings

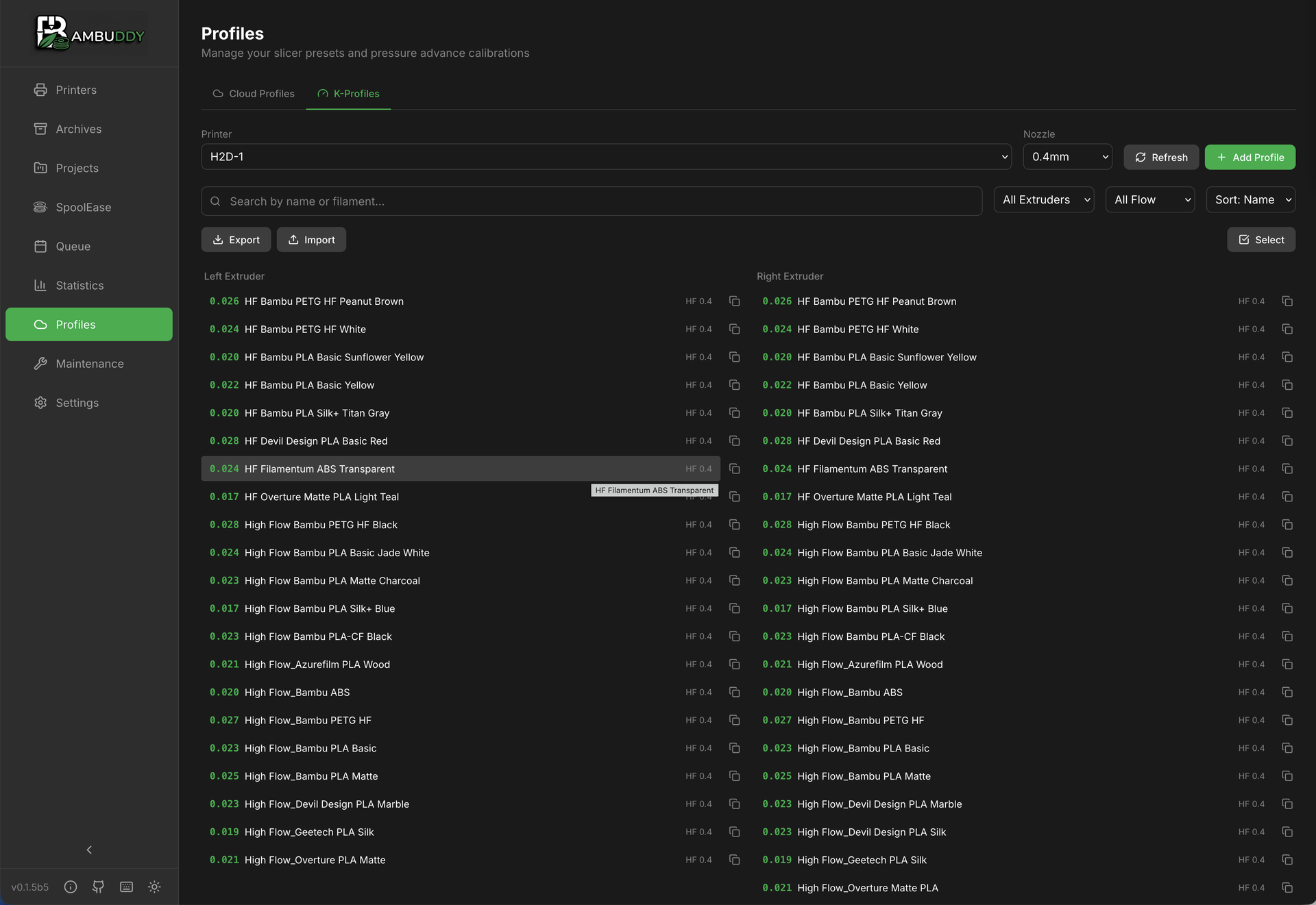

Pressure advance (K-factor) profiles

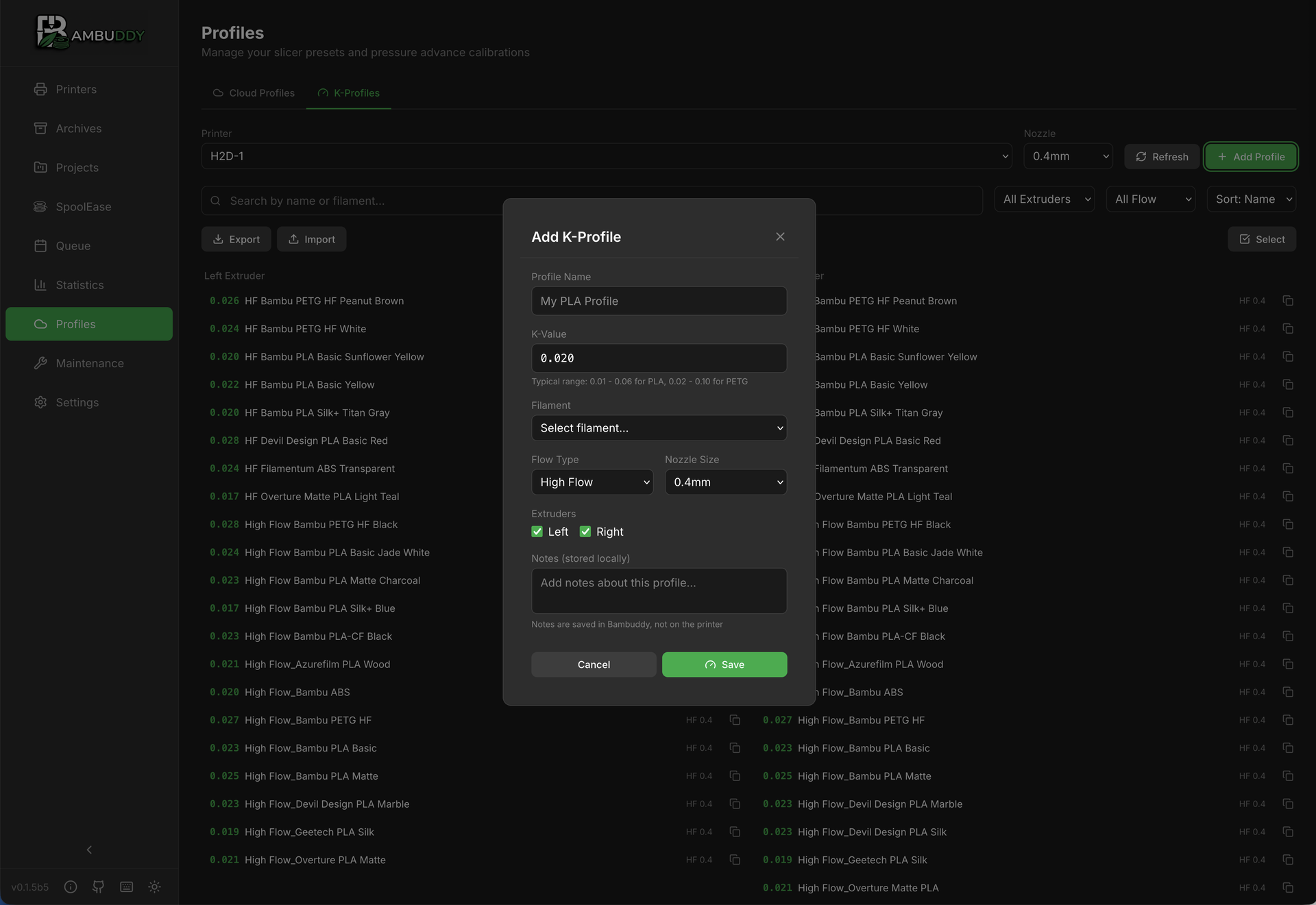

Edit K-factor profile settings

General configuration and integrations

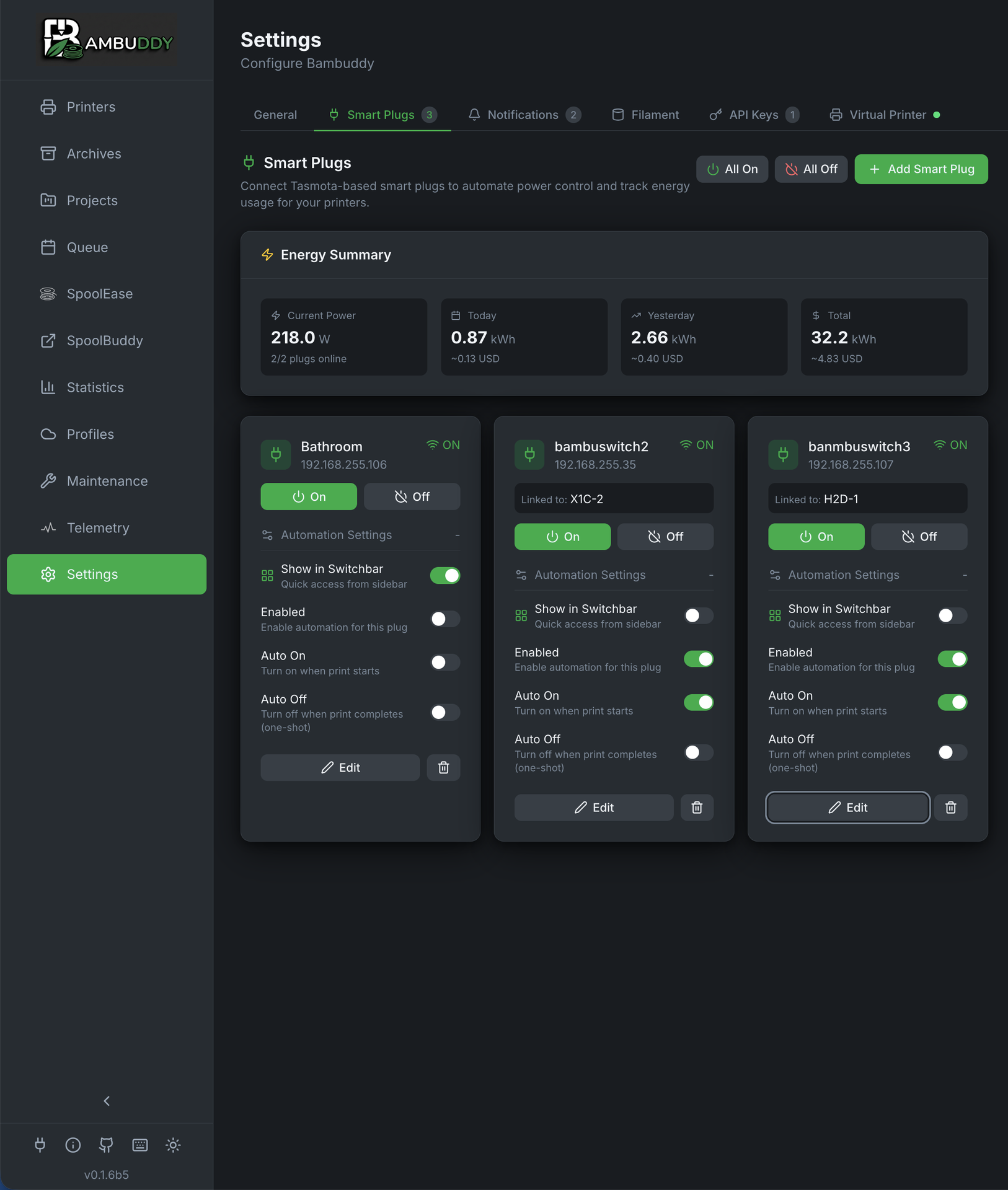

Smart plug control and energy monitoring

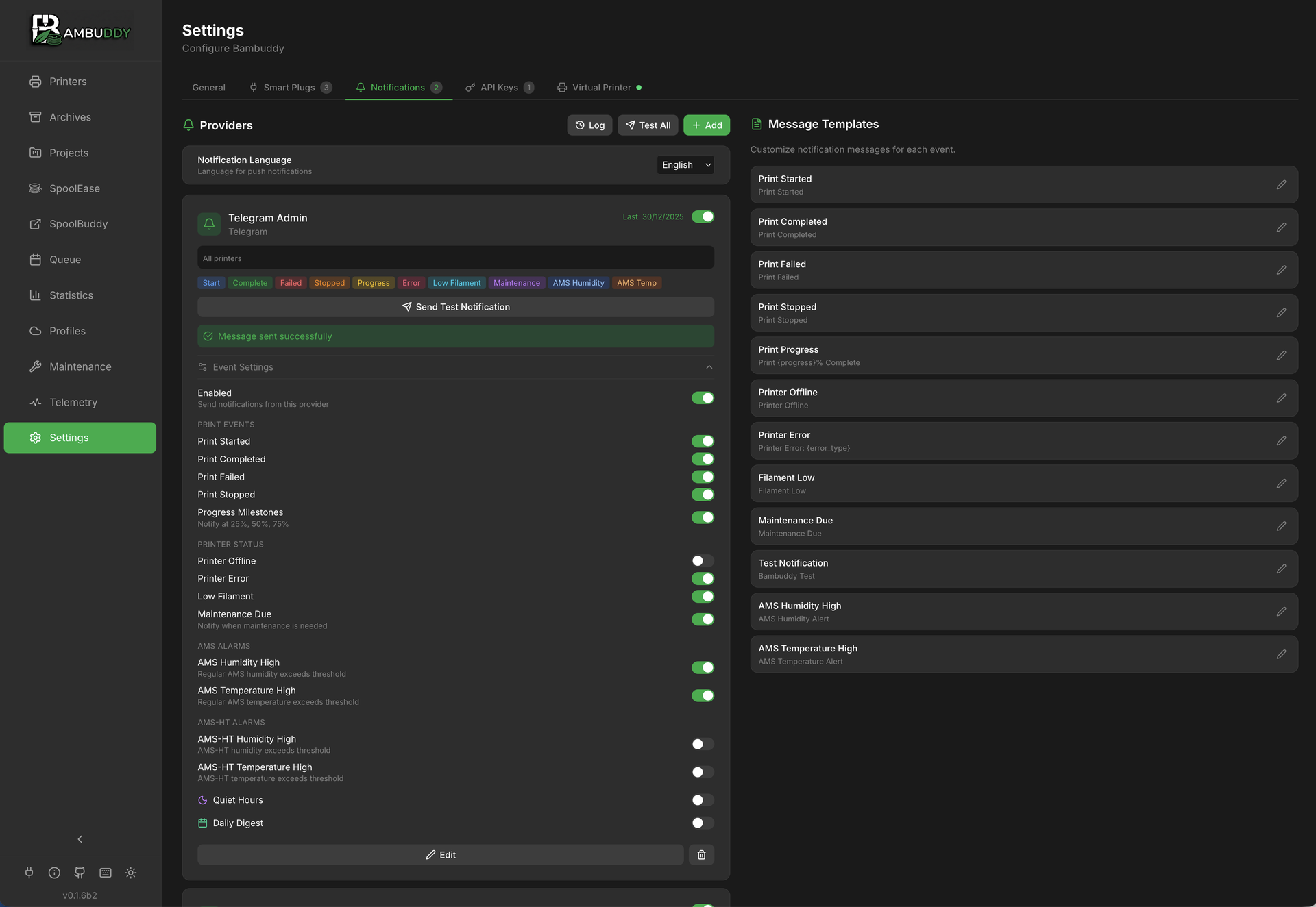

Multi-provider notification system

API keys and webhook endpoints

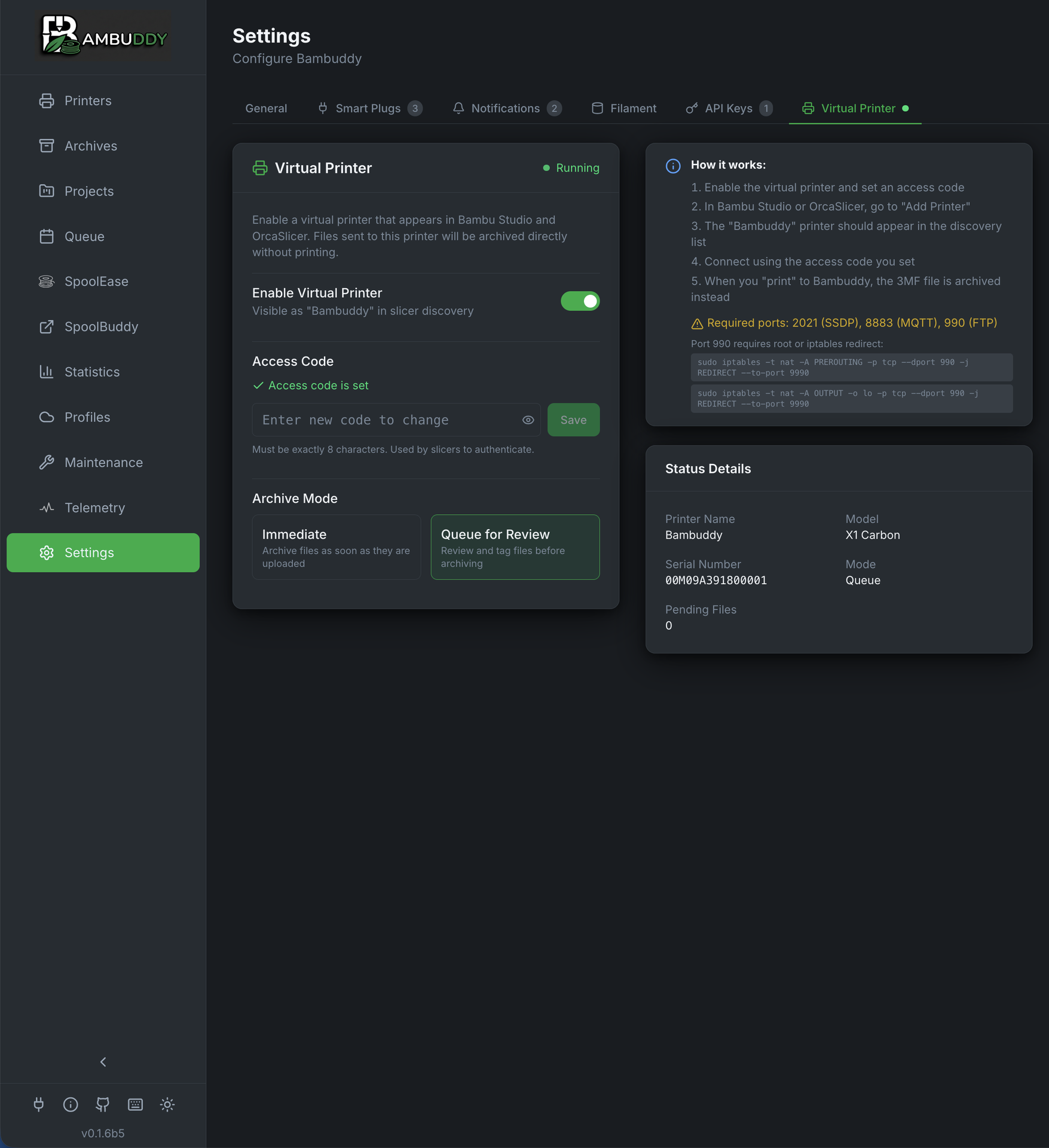

Virtual printer configuration

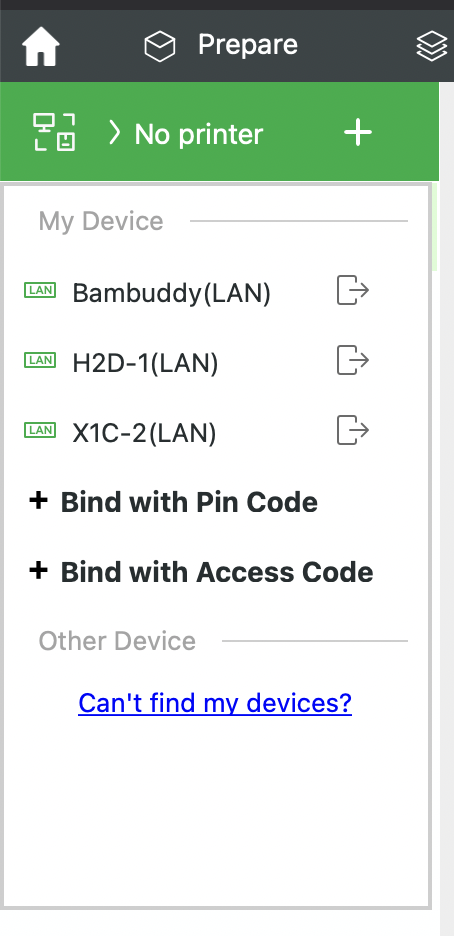

Virtual printer appears in Bambu Studio/Orca Slicer

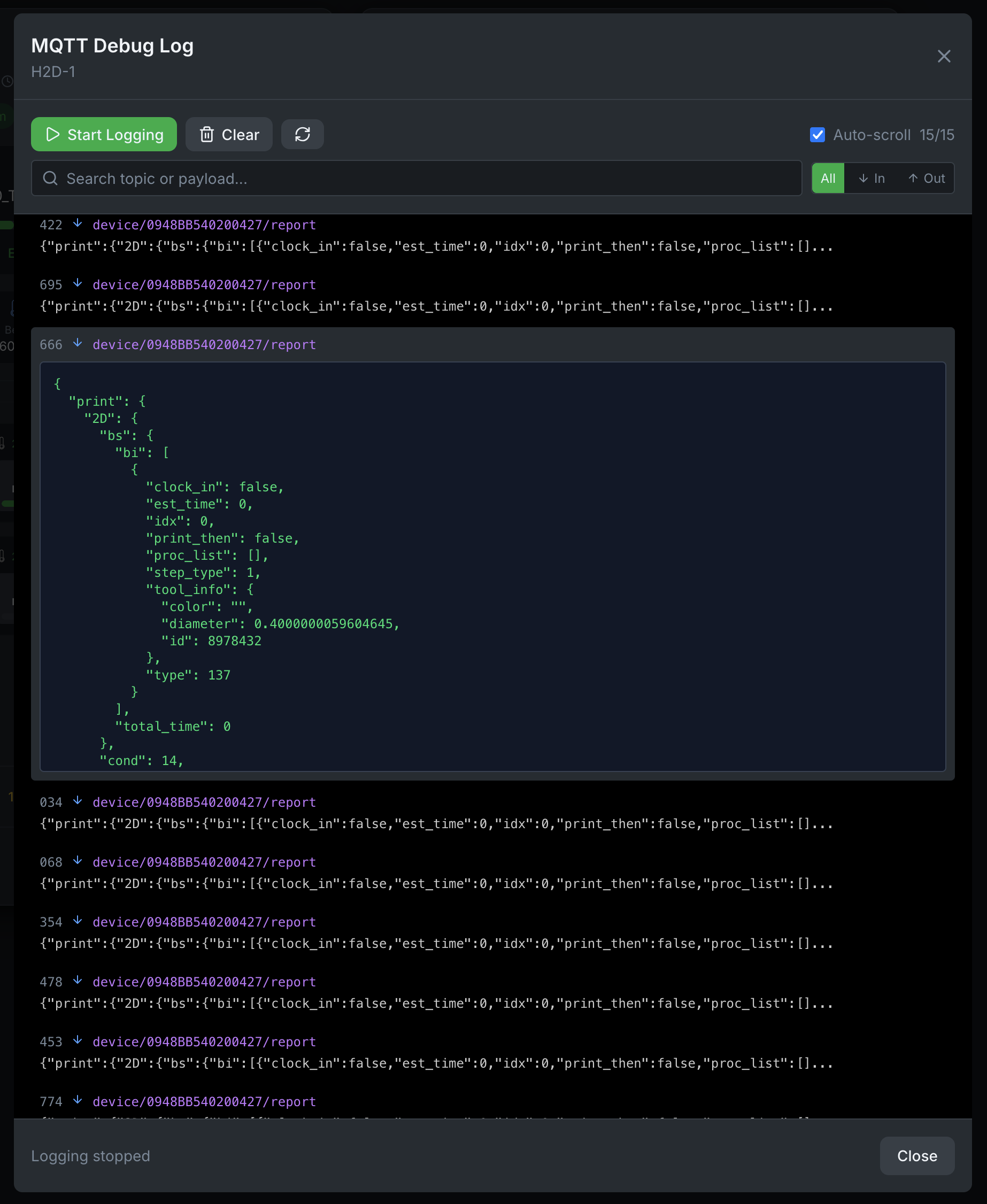

MQTT debug logging for troubleshooting

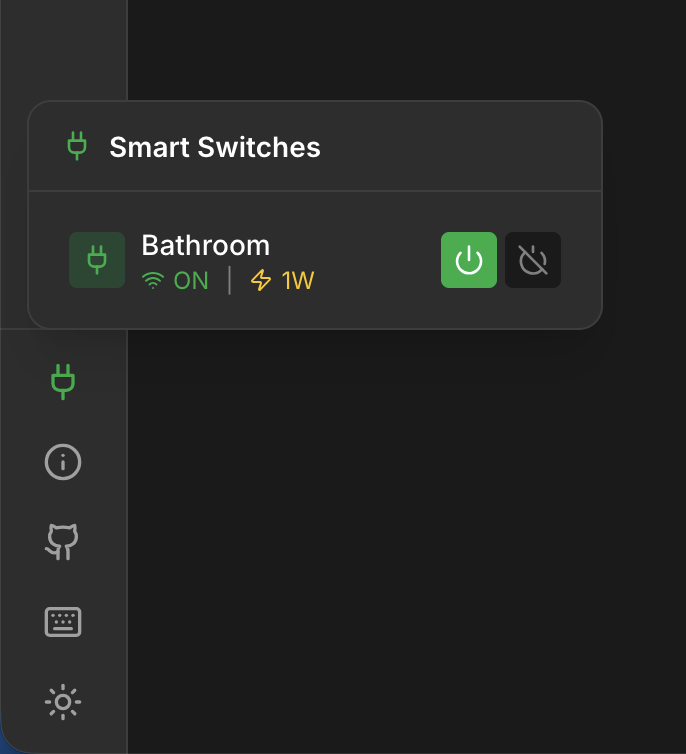

Quick power plug control in sidebar

---

🚀 Quick Start

Requirements

• Python 3.10+ (3.11/3.12 recommended)
• Bambu Lab printer with Developer Mode enabled (see below)
• Same local network as printer

Installation

Docker (Recommended)

Option A: Pre-built image (fastest)

mkdir bambuddy && cd bambuddy
curl -O https://raw.githubusercontent.com/maziggy/bambuddy/main/docker-compose.yml
docker compose up -d

Option B: Build from source

git clone https://github.com/maziggy/bambuddy.git
cd bambuddy
docker compose up -d --build

Open http://localhost:8000 in your browser.

Multi-architecture support: Pre-built images are available for linux/amd64 and linux/arm64 (Raspberry Pi 4/5).

macOS/Windows users: Docker Desktop doesn't support network_mode: host. Edit docker-compose.yml: comment out network_mode: host and uncomment the ports: section. Printer discovery won't work - add printers manually by IP.

Linux users: If you get "permission denied" errors, either prefix commands with sudo (e.g., sudo docker compose up -d) or add your user to the docker group.

Docker Configuration & Commands

**Environment Variables:** | Variable | Default | Description | |----------|---------|-------------| | `TZ` | `UTC` | Your timezone (e.g., `America/New_York`, `Europe/Berlin`) | | `PORT` | `8000` | Port BamBuddy runs on (with host networking mode) | | `DEBUG` | `false` | Enable debug logging | | `LOG_LEVEL` | `INFO` | Log level: `DEBUG`, `INFO`, `WARNING`, `ERROR` | **Data Persistence:** | Volume | Purpose | |--------|---------| | `bambuddy.db` | SQLite database with all your print data | | `archive/` | Archived 3MF files and thumbnails | | `logs/` | Application logs | **Updating:** ```bash # Pre-built image: just pull the latest docker compose pull && docker compose up -d # From source: rebuild after pulling changes cd bambuddy && git pull && docker compose up -d --build ``` **Useful Commands:** ```bash # View logs docker compose logs -f # Stop/Start docker compose down docker compose up -d # Shell access docker compose exec bambuddy /bin/bash ``` **Custom Port:** ```yaml ports: - "3000:8000" # Access on port 3000 ``` **Reverse Proxy (Nginx):** ```nginx server { listen 443 ssl http2; server_name bambuddy.yourdomain.com; ssl_certificate /path/to/cert.pem; ssl_certificate_key /path/to/key.pem; location / { proxy_pass http://localhost:8000; proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection "upgrade"; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header X-Forwarded-Proto $scheme; proxy_read_timeout 86400; } } ``` > **Note:** WebSocket support is required for real-time printer updates. **Network Mode Host** (required for printer discovery and camera streaming): ```yaml services: bambuddy: build: . network_mode: host ``` > **Note:** Docker's default bridge networking cannot receive SSDP multicast packets for automatic printer discovery. When using `network_mode: host`, Bambuddy can discover printers via subnet scanning - enter your network range (e.g., `192.168.1.0/24`) in the Add Printer dialog.

Windows (Portable Launcher)

The easiest way to run Bambuddy on Windows - no installation required:

git clone https://github.com/maziggy/bambuddy.git
cd bambuddy
start_bambuddy.bat

Double-click start_bambuddy.bat and it will:

• Download Python and Node.js automatically (portable, no system changes)
• Install dependencies and build the frontend
• Open your browser to http://localhost:8000

Everything is stored in the .portable\ folder. Use start_bambuddy.bat reset to clean up.

Custom port: set PORT=9000 & start_bambuddy.bat

Manual Installation (Linux/macOS)

# Clone and setup
git clone https://github.com/maziggy/bambuddy.git
cd bambuddy
python3 -m venv venv
source venv/bin/activate
pip install -r requirements.txt

# Run
uvicorn backend.app.main:app --host 0.0.0.0 --port 8000

Open http://localhost:8000 and add your printer!

Need detailed instructions? See the Installation Guide

Enabling Developer Mode

Developer Mode allows third-party software like Bambuddy to control your printer over the local network.

1. On printer: Settings → Network → LAN Only Mode → Enable
2. Enable Developer Mode (appears after LAN Only Mode is enabled)
3. Note the Access Code displayed
4. Find IP address in network settings
5. Find Serial Number in device info

Note: Developer Mode disables cloud features but provides full local control. Standard LAN Mode (without Developer Mode) only allows read-only monitoring.

---

📚 Documentation

Full documentation available at wiki.bambuddy.cool:

• Installation — All installation methods
• Getting Started — First printer setup
• Features — Detailed feature guides
• Troubleshooting — Common issues & solutions
• API Reference — REST API documentation

---

🖨️ Supported Printers

Series	Models
H2	H2D, H2S
X1	X1, X1 Carbon
P1	P1P, P1S, P2S
A1	A1, A1 Mini

---

🛠️ Tech Stack

Component	Technology
Backend	Python, FastAPI, SQLAlchemy
Frontend	React, TypeScript, Tailwind CSS
Database	SQLite
3D Viewer	Three.js
Communication	MQTT (TLS), FTPS

---

🤝 Contributing

Contributions welcome! Here's how to help:

1. Test — Report issues with your printer model
2. Translate — Add new languages
3. Code — Submit PRs for bugs or features

4. Document — Improve wiki and guides

   # Development setup
   git clone https://github.com/maziggy/bambuddy.git
   cd bambuddy

   # Backend
   python3 -m venv venv && source venv/bin/activate
   pip install -r requirements.txt
   DEBUG=true uvicorn backend.app.main:app --reload

   # Frontend (separate terminal)
   cd frontend && npm install && npm run dev


See CONTRIBUTING.md for guidelines.

---

📄 License

MIT License — see LICENSE for details.

---

🙏 Acknowledgments

• Bambu Lab for amazing printers
• The reverse engineering community for protocol documentation
• All testers and contributors

---

If you like Bambuddy and want to support it, you can buy Martin a coffee.

---

Made with ❤️ for the 3D printing community
