GPS for Flipper Zero

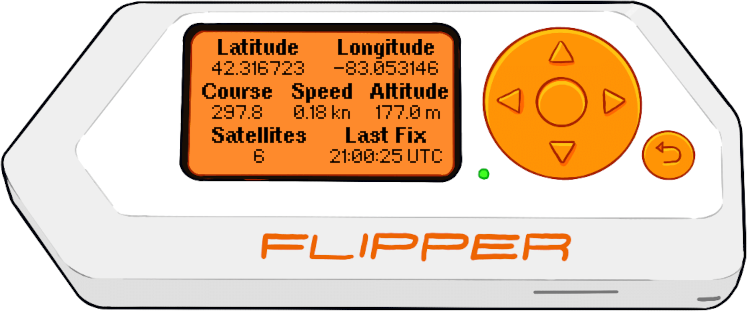

A simple Flipper Zero application for NMEA 0183 serial GPS modules, such as the Adafruit Ultimate GPS Breakout.

Heavy lifting (NMEA parsing) provided by minmea.

Hardware Setup

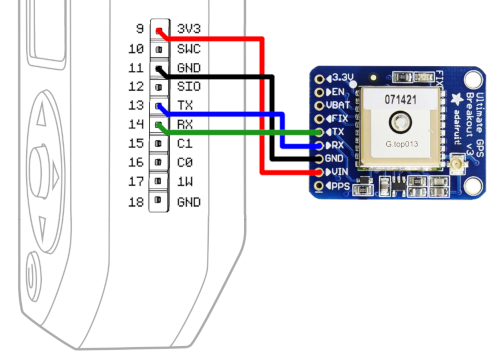

Connect the GPS module to power and the USART using GPIO pins 9 (3.3V), 11 (GND), 13 (TX), and 14 (RX), as appropriate.

See the tutorial video from Lab401 by RocketGod for a visual guide to the hardware setup.

If you have verified this application working with a module not listed here, please submit a PR adding it to the list.
