GPS for Flipper Zero

A simple Flipper Zero application for NMEA 0183 serial GPS modules.

Heavy lifting (NMEA parsing) provided by minmea.

Installation

1. Navigate to the FAP Build GitHub action workflow, and select the most recent run.
2. The FAP is built for both the dev and release channels of the official firmware. Download the artifact corresponding to your firmware version.
3. Extract gps_nmea.fap from the ZIP file to apps/GPIO on your Flipper Zero SD card.

Usage

This is a single-screen app, and a few interactions are provided via the hardware buttons:

• Long press the up button to change the baud rate. The default baud rate is 9600, but 4800, 19200, 38400, 57600, and 115200 baud are also supported.
• Long press the right button to change speed units from knots to kilometers per hour.
• Press the OK button to set the backlight to always on mode. Press it again to disable.
• Long press the back button to exit the app.

Hardware Setup

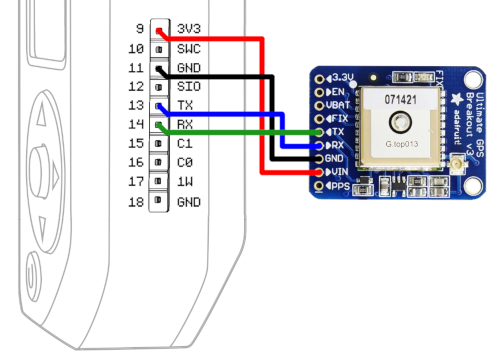

Connect the GPS module to power and the USART using GPIO pins 9 (3.3V), 11 (GND), 13 (TX), and 14 (RX), as appropriate.

See the tutorial video from Lab401 by RocketGod for a visual guide to the hardware setup.

Confirmed Compatible Modules

• Adafruit Ultimate GPS Breakout
• ATGM336H
• Beitian BN-180
• Beitian BN-220
• Beitian BN-280
• Beitian BN-880
• Beitian BK-250
• Beitian BK-357
• Beitian BK-880Q
• Beitian BE-280
• Beitian BN-280ZF
• Beitian BN-357ZF
• Royaltek RBT-2100LP
• u-blox NEO-6M
• u-blox NEO-7M
• Uputronics u-blox MAX-M8C Pico

If you have verified this application working with a module not listed here, please submit a PR adding it to the list.

Building

This application can be compiled using uFBT. Run ufbt in the root directory of the repository.
