Update: README.md

README.md

@@ -167,6 +167,8 @@ _PortData EXT Link for Game Boy Color, Game Boy Pocket, GBC, GBP, GBL._
 <br />
 <img src="./docs/images/flipper-zero-pcb.png" width="400" /><br />
 </p>
+I used 33kΩ resistor on CLK, but it's optional, it can be connected directly.
+

 ## Connection: Flipper Zero GPIO - Game Boy

@@ -192,6 +194,16 @@ The pins should be connected as follows:
 | 3 (SI)                   | 6 (B2)            |
 | 2 (SO)                   | 5 (B3)            |

+**NOTA**: It's possible to cut a cable directly without using a socket, but it's important to note that the cable is a crossover cable.
+
+<p align='center'>
+<br />
+<img src="./docs/images/cut-cable.png" width="400" /><br />
+</p>

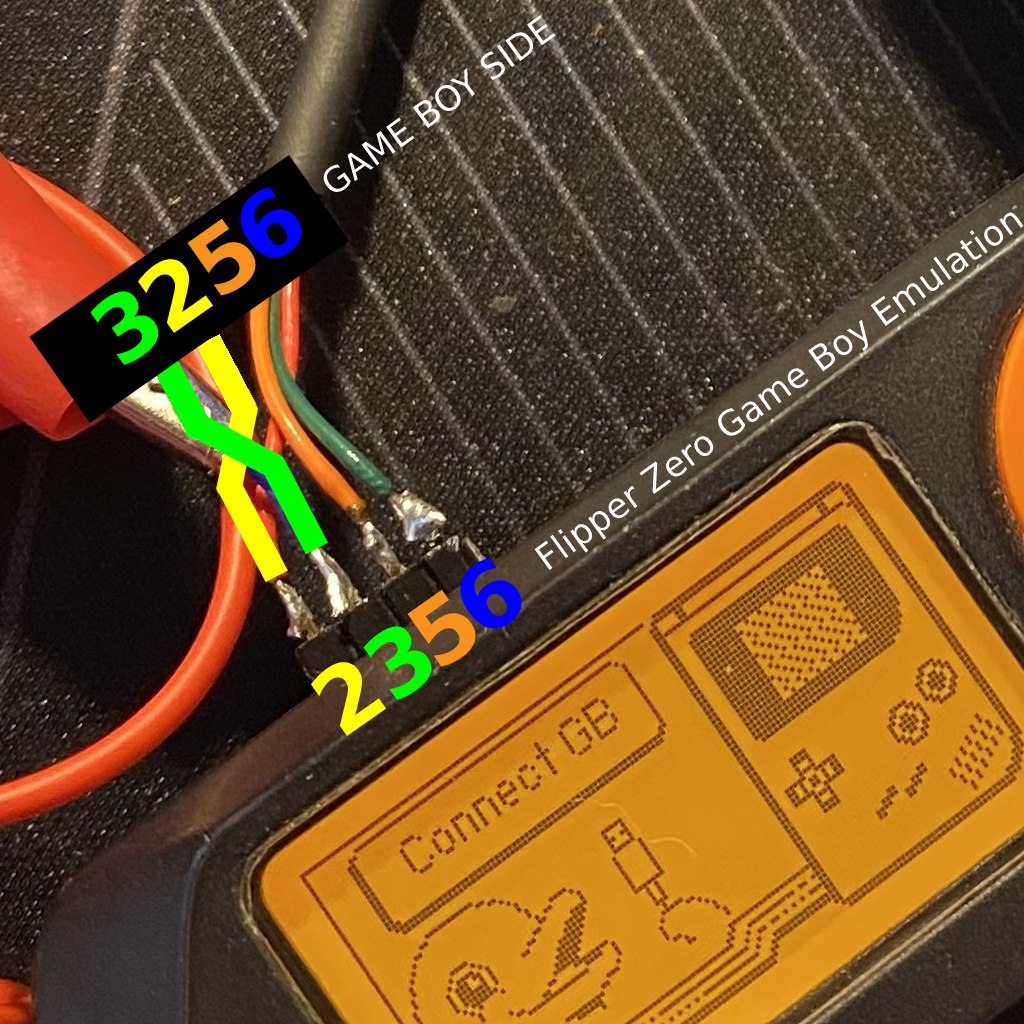

+_"Cable Game Link" cut and directly connected to the Flipper Zero pins._
+
+
+
 ## GUI

 To generate the graphical interface, the [**FUI-Editor**](https://ilin.pt/stuff/fui-editor/) tool was used. Additionally, the original sprites from the game Pokemon Yellow, which are found in the [**Disassembly of Pokemon Yellow**](https://github.com/pret/pokeyellow/tree/master/gfx/pokemon/front) repository, were used.

README_es.md

@@ -164,6 +164,7 @@ _PortData EXT Link para Game Boy Color, Game Boy Pocket, GBC, GBP, GBL._
 <br />
 <img src="./docs/images/flipper-zero-pcb.png" width="400" /><br />
 </p>
+Usé una resistencia de 33kΩ en CLK, pero es opcional, se puede conectar directamente.

 ## Conexión: Flipper Zero GPIO - Game Boy

@@ -189,6 +190,14 @@ Se deben conectar los Pines de la siguiente manera
 | 3 (SI)                   | 6 (B2)            |
 | 2 (SO)                   | 5 (B3)            |

+**NOTA**: Pudes cortar un cable directamente sin usar el socket pero debes tener en cuenta que el es un cable cruzado.
+
+<p align='center'>
+<br />
+<img src="./docs/images/cut-cable.png" width="400" /><br />
+</p>
+_"Cable Game Link" cortado y conectado directamente a los pines de Flipper Zero._
+
 ## GUI

 Para generar la Interfaz gráfica se utilizó la herramienta [**FUI-Editor**](https://ilin.pt/stuff/fui-editor/).
