+// Written by vad7, 20.11.2022.
|
|
|
+//
|
|
|
+#include "nrf24scan.h"
|
|
|
+
|
|
|
+#include <furi.h>
|
|
|
+#include <furi_hal.h>
|
|
|
+#include <gui/gui.h>
|
|
|
+#include <dialogs/dialogs.h>
|
|
|
+#include <input/input.h>
|
|
|
+#include <stdlib.h>
|
|
|
+#include <dolphin/dolphin.h>
|
|
|
+#include <nrf24.h>
|
|
|
+
|
|
|
+static uint8_t xxx = -1;
|
|
|
+
|
|
|
+#define TAG "nrf24scan"
|
|
|
+#define VERSION "1.5"
|
|
|
+#define MAX_CHANNEL 125
|
|
|
+#define MAX_ADDR 6
|
|
|
+
|
|
|
+#define SCAN_APP_PATH_FOLDER "/ext/nrf24scan"
|
|
|
+#define SETTINGS_FILENAME "settings.txt"// File format (1 parameter per line):
|
|
|
+ // Rate: 0/1/2 - rate in Mbps (=0.25/1/2)
|
|
|
+ // Ch: 0..125 - default channel
|
|
|
+ // ESB: 0/1 (1 - Enhanced ShockBurst)
|
|
|
+ // DPL: 0/1 (1 - Dynamic Payload Length)
|
|
|
+ // CRC: 0/1/2 (CRC length)
|
|
|
+ // Payload: 1..32 (bytes)
|
|
|
+ // P0: address P0 in hex (5 byte, LSB last)
|
|
|
+ // P1: address P1 in hex (5 byte, LSB last)
|
|
|
+ // P2: address P2, LSB in hex (1 byte)
|
|
|
+ // P3: address P3, LSB in hex (1 byte)
|
|
|
+ // P4: address P4, LSB in hex (1 byte)
|
|
|
+ // P5: address P5, LSB in hex (1 byte)
|
|
|
+ // captured data in raw format, first byte = address # 0..5, Payload len if DPL
|
|
|
+ // ... up to MAX_LOG_RECORDS-1
|
|
|
+#define LOG_FILENAME "log"
|
|
|
+#define LOG_FILEEXT ".txt"
|
|
|
+#define MAX_LOG_RECORDS 100
|
|
|
+#define LOG_REC_SIZE 33 // max packet size
|
|
|

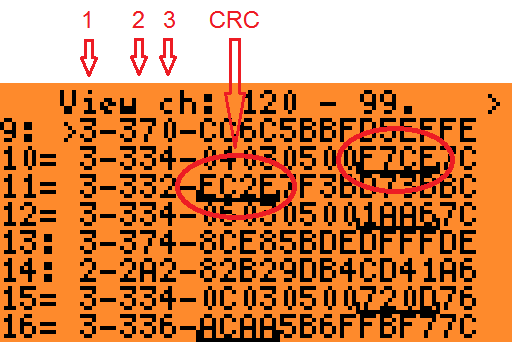

+#define VIEW_LOG_MAX_X 22
|
|
|
+#define VIEW_LOG_WIDTH_B 10 // bytes
|
|
|
+
|
|
|
+const char SettingsFld_Rate[] = "Rate:";
|
|
|
+const char SettingsFld_Ch[] = "Ch:";
|
|
|
+const char SettingsFld_ESB[] = "ESB:";
|
|
|
+const char SettingsFld_DPL[] = "DPL:";
|
|
|
+const char SettingsFld_CRC[] = "CRC:";
|
|
|
+const char SettingsFld_Payload[] = "Payload:";
|
|
|
+char SettingsFld_Addr = 'P';
|
|
|
+
|
|
|
+Nrf24Scan* APP;
|
|
|
+uint8_t what_doing = 0; // 0 - setup, 1 - view log, 2 - view addresses
|
|
|
+uint8_t what_to_do = 1; // 0 - view, 1 - view & scan
|
|
|
+uint32_t key_press_seq_ok = 0;
|
|
|
+uint8_t save_settings = 0;
|
|
|
+char screen_buf[64];
|
|
|
+char addr_file_name[32];
|
|
|
+uint8_t NRF_rate = 1; // 0 - 250Kbps, 1 - 1Mbps, 2 - 2Mbps
|
|
|
+uint8_t NRF_channel = 0;// 0..125
|
|
|
+uint8_t NRF_ESB = 0; // 0 - ShockBurst, 1 - Enhanced ShockBurst
|
|
|
+uint8_t NRF_DPL = 0; // 1 - Dynamic Payload Length
|
|
|
+uint8_t NRF_CRC = 0; // 1 - No, 1 - CRC 1byte, 2 - CRC 2byte
|
|
|
+uint8_t NRF_Payload = 32;// len in bytes, max 32
|
|
|
+uint8_t NRF_AA_OFF = 0; // Disable Auto Acknowledgement
|
|
|
+bool NRF_ERROR = 0;
|
|
|
+
|
|
|
+struct {
|
|
|
+ uint8_t addr_P0[5]; // MSB first
|
|
|
+ uint8_t addr_P1[5]; // MSB first
|
|
|
+ uint8_t addr_P2; // LSB only, MSB bytes equal addr_P1
|
|
|
+ uint8_t addr_P3; // LSB only, MSB bytes equal addr_P1
|
|
|
+ uint8_t addr_P4; // LSB only, MSB bytes equal addr_P1
|
|
|
+ uint8_t addr_P5; // LSB only, MSB bytes equal addr_P1
|
|
|
+ uint8_t addr_len; // 2..5
|
|
|
+ uint8_t addr_count;
|
|
|
+} addrs;
|
|
|
+
|
|
|
+int8_t log_to_file = 0; // 0 - no, 1 - yes(new), 2 - append, -1 - only clear
|
|
|
+uint16_t log_arr_idx;
|
|
|
+uint16_t view_log_arr_idx = 0;
|
|
|
+uint16_t view_log_arr_x = 0;
|
|
|
+bool save_to_new_log = true;
|
|
|
+uint16_t last_packet_send = -1;
|
|
|
+uint8_t last_packet_send_st = 0;
|
|
|
+int16_t find_channel_period = 0; // sec
|
|
|
+uint8_t menu_selected = 0;
|
|
|
+uint32_t start_time;
|
|
|

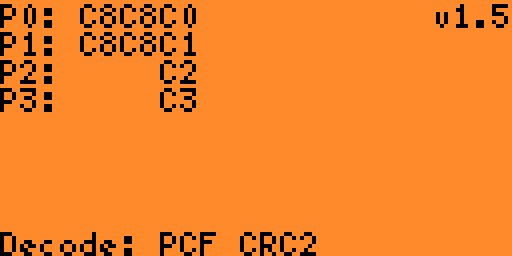

+uint8_t view_log_decode_PCF = 0; // view log: 1 - decode packet control field (9b) when ESB off. After pipe # (hex): <Payload len 6b><PID_2b+NO_ACK_1b>
|
|
|
+uint8_t view_log_decode_CRC = 0; // CRC bytes, 0 - none
|
|
|
+
|
|
|
+#define menu_selected_max 5
|
|
|
+enum {
|
|
|
+ Menu_open_file = 0,
|
|
|
+ Menu_enter_channel,
|
|
|
+ Menu_enter_rate,
|
|
|
+ Menu_enter_scan_period,
|
|
|
+ Menu_log,
|
|
|
+ Menu_ok
|
|
|
+};
|
|
|
+
|
|
|
+//#define MIN(a, b) ((a<b)?a:b)
|
|
|
+
|
|
|
+static uint8_t GetHexVal(char hex) {
|
|
|
+ return (uint8_t)hex - ((uint8_t)hex < 58 ? 48 : ((uint8_t)hex < 97 ? 55 : 87));
|
|
|
+}
|
|
|
+
|
|
|
+// Return num bytes in array
|
|
|
+static uint8_t ConvertHexToArray(char * hex, uint8_t * array, uint8_t maxlen) {
|
|
|
+ uint8_t len = 0;
|
|
|
+ while(maxlen) {
|
|
|
+ uint8_t ch = *hex++;
|
|
|
+ if(ch == 0) break;
|
|
|
+ if(ch < '0') continue;
|
|
|
+ *array++ = (GetHexVal(ch) << 4) + GetHexVal(*hex++);
|
|
|
+ len++;
|
|
|
+ maxlen--;
|
|
|
+ }
|
|
|
+ return len;
|
|
|
+}
|
|
|
+
|
|
|
+static void add_to_str_hex_bytes(char *out, char *arr, int bytes)
|
|
|
+{
|
|
|
+ if(bytes <= 0) return;
|
|
|
+ out += strlen(out);
|
|
|
+ do {
|
|
|
+ snprintf(out, 3, "%02X", *arr++);
|
|
|
+ out += 2;
|
|
|
+ } while(--bytes);
|
|
|
+}
|
|
|
+
|
|
|
+static void add_to_furi_str_hex_bytes(FuriString* str, char *arr, int bytes)
|
|
|
+{
|
|
|
+ if(!bytes) return;
|
|
|
+ do {
|
|
|
+ furi_string_cat_printf(str, "%02X", *arr++);
|
|
|
+ } while(--bytes);
|
|
|
+}
|
|
|
+
|
|
|
+static void add_to_str_hex_bytes_shift_9b(char *out, char *arr, int bytes)
|
|
|
+{
|
|
|
+ if(bytes <= 0) return;
|
|
|
+ out += strlen(out);
|
|
|
+ arr++; // +8b
|
|
|
+ do {
|
|
|
+ snprintf(out, 4, "%02X", ((uint8_t)(*arr << 1)) | (*(arr+1) >> 7));
|
|
|
+ arr++;
|
|
|
+ out += 2;
|
|
|
+ } while(--bytes);
|
|
|
+}
|
|
|
+
|
|
|
+void clear_log()
|
|
|
+{
|
|
|
+ log_arr_idx = 0;
|
|
|
+ view_log_arr_idx = 0;
|
|
|
+ last_packet_send = -1;
|
|
|
+}
|
|
|
+
|
|
|
+void allocate_log_array()
|
|
|
+{
|
|
|
+ APP->log_arr = malloc(LOG_REC_SIZE * MAX_LOG_RECORDS);
|
|
|
+ if(APP->log_arr == NULL) {
|
|
|
+ FURI_LOG_E(TAG, "Not enouch memory: %d", LOG_REC_SIZE * MAX_LOG_RECORDS);
|
|
|
+ strcpy(addr_file_name, "MEMORY LOW!");
|
|
|
+ }
|
|
|
+ clear_log();
|
|
|
+}
|
|
|
+
|
|
|
+void write_to_log_file(Storage* storage, bool f_settings)
|
|
|
+{
|
|
|
+ if(log_arr_idx == 0 && !f_settings) return;
|
|
|
+ Stream* file_stream = file_stream_alloc(storage);
|
|
|
+ FuriString* str = furi_string_alloc();
|
|
|
+ furi_string_set(str, SCAN_APP_PATH_FOLDER);
|
|
|
+ furi_string_cat(str, "/");
|
|
|
+ bool fl;
|
|
|
+ if(f_settings) {
|
|
|
+ furi_string_cat(str, SETTINGS_FILENAME);
|
|
|
+ fl = file_stream_open(file_stream, furi_string_get_cstr(str), FSAM_READ_WRITE, FSOM_CREATE_ALWAYS);
|
|
|
+ if(!fl) file_stream_close(file_stream);
|
|
|
+ } else {
|
|
|
+ furi_string_cat(str, LOG_FILENAME);
|
|
|
+ furi_string_cat(str, LOG_FILEEXT);
|
|
|
+ if(save_to_new_log) {
|
|
|
+ int cnt = 1;
|
|
|
+ do {
|
|
|
+ fl = file_stream_open(file_stream, furi_string_get_cstr(str), FSAM_READ_WRITE, FSOM_CREATE_NEW);
|
|
|
+ if(fl) break;
|
|
|
+ file_stream_close(file_stream);
|
|
|
+ furi_string_set(str, SCAN_APP_PATH_FOLDER);
|
|
|
+ furi_string_cat(str, "/");
|
|
|
+ furi_string_cat(str, LOG_FILENAME);
|
|
|
+ furi_string_cat_printf(str, "-%02d", cnt);
|
|
|
+ furi_string_cat(str, LOG_FILEEXT);
|
|
|
+ } while(++cnt < 100);
|
|
|
+ if(!fl) {
|
|
|
+ FURI_LOG_E(TAG, "Failed to create new log file");
|
|
|
+ notification_message(APP->notification, &sequence_blink_red_100);
|
|
|
+ }
|
|
|
+ } else {
|
|
|
+ fl = file_stream_open(file_stream, furi_string_get_cstr(str), FSAM_READ_WRITE, FSOM_OPEN_APPEND);
|
|
|
+ if(fl) {
|
|
|
+ if(stream_size(file_stream) == 0) save_to_new_log = true;
|
|
|
+ } else file_stream_close(file_stream);
|
|
|
+ }
|
|
|
+ }
|
|
|
+ if(fl) {
|
|
|
+ FURI_LOG_D(TAG, "Save to %s", furi_string_get_cstr(str));
|
|
|
+ if(save_to_new_log || f_settings) {
|
|
|
+ furi_string_printf(str, "%s %d\n%s %d\n%s %d\n", SettingsFld_Rate, NRF_rate, SettingsFld_Ch, NRF_channel, SettingsFld_ESB, NRF_ESB);
|
|
|
+ furi_string_cat_printf(str, "%s %d\n%s %d\n%s %d\n", SettingsFld_DPL, NRF_DPL, SettingsFld_CRC, NRF_CRC, SettingsFld_Payload, NRF_Payload);
|
|
|
+ furi_string_cat_printf(str, "P0: ");
|
|
|
+ add_to_furi_str_hex_bytes(str, (char*)addrs.addr_P0, addrs.addr_len); furi_string_cat(str, "\n");
|
|
|
+ if(addrs.addr_count > 1) { furi_string_cat_printf(str, "P1: "); add_to_furi_str_hex_bytes(str, (char*)addrs.addr_P1, addrs.addr_len); furi_string_cat(str, "\n"); }
|
|
|
+ if(addrs.addr_count > 2) { furi_string_cat_printf(str, "P2: "); furi_string_cat_printf(str, "%02X\n", addrs.addr_P2); }
|
|
|
+ if(addrs.addr_count > 3) { furi_string_cat_printf(str, "P3: "); furi_string_cat_printf(str, "%02X\n", addrs.addr_P3); }
|
|
|
+ if(addrs.addr_count > 4) { furi_string_cat_printf(str, "P4: "); furi_string_cat_printf(str, "%02X\n", addrs.addr_P4); }
|
|
|
+ if(addrs.addr_count > 5) { furi_string_cat_printf(str, "P5: "); furi_string_cat_printf(str, "%02X\n", addrs.addr_P5); }
|
|
|
+ if(!(fl = stream_write_string(file_stream, str) == furi_string_size(str))) {
|
|
|
+ FURI_LOG_E(TAG, "Failed to write header to file!");
|
|
|
+ notification_message(APP->notification, &sequence_blink_red_100);
|
|
|
+ }
|
|
|
+ }
|
|
|
+ if(fl) {
|
|
|
+ if(f_settings) {
|
|
|
+ save_settings = 0;
|
|
|
+ if(strcmp(addr_file_name, "NONE") == 0) strcpy(addr_file_name, SETTINGS_FILENAME);
|
|
|
+ } else {
|
|
|
+ int i = 0;
|
|
|
+ for(; i < log_arr_idx; i++) {
|
|
|
+ furi_string_reset(str);
|
|
|
+ add_to_furi_str_hex_bytes(str, (char*)APP->log_arr + i * LOG_REC_SIZE, MIN(NRF_Payload + 1, LOG_REC_SIZE));
|
|
|
+ furi_string_cat(str, "\n");
|
|
|
+ if(stream_write_string(file_stream, str) != furi_string_size(str)) {
|
|
|
+ FURI_LOG_E(TAG, "Failed to write to file!");
|
|
|
+ break;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ if(i == log_arr_idx) {
|
|
|
+ notification_message(APP->notification, &sequence_blink_yellow_100);
|
|
|
+ FURI_LOG_D(TAG, "File saved");
|
|
|
+ }
|
|
|
+ save_to_new_log = false;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ file_stream_close(file_stream);
|
|
|
+ } else {
|
|
|
+ FURI_LOG_E(TAG, "Failed to open file %s", furi_string_get_cstr(str));
|
|
|
+ notification_message(APP->notification, &sequence_blink_red_100);
|
|
|
+ }
|
|
|
+ stream_free(file_stream);
|
|
|
+ furi_string_free(str);
|
|
|
+}
|
|
|
+
|
|
|
+static bool select_settings_file(Stream* stream) {
|
|
|
+ DialogsApp* dialogs = furi_record_open("dialogs");
|
|
|
+ bool result = false;
|
|
|
+ FuriString* path;
|
|
|
+ path = furi_string_alloc();
|
|
|
+ furi_string_set(path, SCAN_APP_PATH_FOLDER);
|
|
|
+
|
|
|
+ DialogsFileBrowserOptions browser_options;
|
|
|
+ dialog_file_browser_set_basic_options(&browser_options, ".txt", NULL);
|
|
|
+ browser_options.hide_ext = false;
|
|
|
+
|
|
|
+ bool ret = dialog_file_browser_show(dialogs, path, path, &browser_options);
|
|
|
+
|
|
|
+ furi_record_close("dialogs");
|
|
|
+ if(ret) {
|
|
|
+ if(!file_stream_open(stream, furi_string_get_cstr(path), FSAM_READ, FSOM_OPEN_EXISTING)) {
|
|
|
+ FURI_LOG_D(TAG, "Cannot open file \"%s\"", furi_string_get_cstr(path));
|
|
|
+ file_stream_close(stream);
|
|
|
+ } else {
|
|
|
+ FURI_LOG_D(TAG, "Open file \"%s\"", furi_string_get_cstr(path));
|
|
|
+ strncpy(addr_file_name, furi_string_get_cstr(path) + sizeof(SCAN_APP_PATH_FOLDER), sizeof(addr_file_name));
|
|
|
+ result = true;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ furi_string_free(path);
|
|
|
+ return result;
|
|
|
+}
|
|
|
+
|
|
|
+// 0 - success, otherwise an error
|
|
|
+static uint8_t load_settings_file(Stream* file_stream) {
|
|
|
+ size_t file_size = 0;
|
|
|
+ char* file_buf;
|
|
|
+ uint8_t err = 5;
|
|
|
+ file_size = stream_size(file_stream);
|
|
|
+ if(file_size == (size_t)0) {
|
|
|
+ FURI_LOG_D(TAG, "load failed. file_size: %d", file_size);
|
|
|
+ return 1;
|
|
|
+ }
|
|
|
+ file_size = MIN(file_size, LOG_REC_SIZE * MAX_LOG_RECORDS * 2 + 100);
|
|
|
+ file_buf = malloc(file_size + 1);
|
|
|
+ if(file_buf == NULL) {
|
|
|
+ FURI_LOG_D(TAG, "Memory low, need: %d", file_size);
|
|
|
+ return 2;
|
|
|
+ }
|
|
|
+ memset(file_buf, 0, file_size + 1);
|
|
|
+ if(stream_read(file_stream, (uint8_t*)file_buf, file_size) == file_size) {
|
|
|
+ FURI_LOG_D(TAG, "Loading settings file");
|
|
|
+ char* line_ptr = file_buf;
|
|
|
+ int16_t line_num = 0;
|
|
|
+ memset((uint8_t*)&addrs, 0, sizeof(addrs));
|
|
|
+ bool log_loaded = false;
|
|
|
+ while(line_ptr && line_ptr - file_buf < file_size) {
|
|
|
+ char* end_ptr = strstr((char*)line_ptr, "\n");
|
|
|
+ if(end_ptr == NULL) end_ptr = file_buf + file_size; else *end_ptr = '\0';
|
|
|
+ int line_len = end_ptr - line_ptr;
|
|
|
+ if(*line_ptr == '\r' || line_len == 0) {
|
|
|
+ line_ptr = end_ptr + 1;
|
|
|
+ continue;
|
|
|
+ }
|
|
|
+ if(*(end_ptr - 1) < '0') {
|
|
|
+ *(end_ptr - 1) = '\0';
|
|
|
+ line_len--;
|
|
|
+ }
|
|
|
+ FURI_LOG_D(TAG, " L#%d: [%d]%s", line_num, line_len, line_ptr);
|
|
|
+ if(strncmp(line_ptr, SettingsFld_Rate, sizeof(SettingsFld_Rate)-1) == 0) {
|
|
|
+ NRF_rate = atoi(line_ptr + sizeof(SettingsFld_Rate));
|
|
|
+ } else if(strncmp(line_ptr, SettingsFld_Ch, sizeof(SettingsFld_Ch)-1) == 0) {
|
|
|
+ NRF_channel = atoi(line_ptr + sizeof(SettingsFld_Ch));
|
|
|
+ } else if(strncmp(line_ptr, SettingsFld_ESB, sizeof(SettingsFld_ESB)-1) == 0) {
|
|
|
+ NRF_ESB = atoi(line_ptr + sizeof(SettingsFld_ESB));
|
|
|
+ } else if(strncmp(line_ptr, SettingsFld_DPL, sizeof(SettingsFld_DPL)-1) == 0) {
|
|
|
+ NRF_DPL = atoi(line_ptr + sizeof(SettingsFld_DPL));
|
|
|
+ } else if(strncmp(line_ptr, SettingsFld_CRC, sizeof(SettingsFld_CRC)-1) == 0) {
|
|
|
+ NRF_CRC = atoi(line_ptr + sizeof(SettingsFld_CRC));
|
|
|
+ } else if(strncmp(line_ptr, SettingsFld_Payload, sizeof(SettingsFld_Payload)-1) == 0) {
|
|
|
+ NRF_Payload = atoi(line_ptr + sizeof(SettingsFld_Payload));
|
|
|
+ if(NRF_Payload == 0 || NRF_Payload > 32) NRF_Payload = 32;
|
|
|
+ } else if(*line_ptr == SettingsFld_Addr) {
|
|
|
+ char a = *(++line_ptr);
|
|
|
+ line_ptr += 3;
|
|
|
+ switch(a) {
|
|
|
+ case '0':
|
|
|
+ addrs.addr_len = ConvertHexToArray(line_ptr, addrs.addr_P0, 5);
|
|
|
+ FURI_LOG_D(TAG, " +Addr(%d): %02X%02X%02X...", addrs.addr_len, addrs.addr_P0[0], addrs.addr_P0[1], addrs.addr_P0[2]);
|
|
|
+ if(addrs.addr_len >= 2) err = 0;
|
|
|
+ break;
|
|
|
+ case '1':
|
|
|
+ ConvertHexToArray(line_ptr, addrs.addr_P1, 5);
|
|
|
+ FURI_LOG_D(TAG, " +Addr: %02X%02X%02X...", addrs.addr_P0[1], addrs.addr_P1[1], addrs.addr_P1[2]);
|
|
|
+ break;
|
|
|
+ case '2':
|
|
|
+ ConvertHexToArray(line_ptr, &addrs.addr_P2, 1);
|
|
|
+ break;
|
|
|
+ case '3':
|
|
|
+ ConvertHexToArray(line_ptr, &addrs.addr_P3, 1);
|
|
|
+ break;
|
|
|
+ case '4':
|
|
|
+ ConvertHexToArray(line_ptr, &addrs.addr_P4, 1);
|
|
|
+ break;
|
|
|
+ case '5':
|
|
|
+ ConvertHexToArray(line_ptr, &addrs.addr_P5, 1);
|
|
|
+ break;
|
|
|
+ default:
|
|
|
+ a = 0;
|
|
|
+ break;
|
|
|
+ }
|
|
|
+ if(err == 0 && a) addrs.addr_count = a - '0' + 1;
|
|
|
+ } else if(line_len >= (NRF_Payload + 1) * 2) { // data
|
|
|
+ if(!log_loaded) {
|
|
|
+ clear_log();
|
|
|
+ what_to_do = 0;
|
|
|
+ log_loaded = true;
|
|
|
+ }
|
|
|
+ if(log_arr_idx < MAX_LOG_RECORDS - 1) {
|
|
|
+ ConvertHexToArray(line_ptr, APP->log_arr + log_arr_idx * LOG_REC_SIZE, MIN(NRF_Payload + 1, LOG_REC_SIZE));
|
|
|
+ log_arr_idx++;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ line_ptr = end_ptr + 1;
|
|
|
+ line_num++;
|
|
|
+ }
|
|
|
+ } else {
|
|
|
+ FURI_LOG_D(TAG, "load failed. file size: %d", file_size);
|
|
|
+ err = 4;
|
|
|
+ }
|
|
|
+ free(file_buf);
|
|
|
+ return err;
|
|
|
+}
|
|
|
+
|
|
|
+static void input_callback(InputEvent* input_event, FuriMessageQueue* event_queue) {
|
|
|
+ furi_assert(event_queue);
|
|
|
+ PluginEvent event = {.type = EventTypeKey, .input = *input_event};
|
|
|
+ furi_message_queue_put(event_queue, &event, FuriWaitForever);
|
|
|
+}
|
|
|
+
|
|
|
+static void prepare_nrf24()
|
|
|
+{
|
|
|
+ uint8_t addr[5];
|
|
|
+ uint8_t erx_addr = (1<<0); // Enable RX_P0
|
|
|
+ if(addrs.addr_count == 0) return;
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_CONFIG, 0x70 | ((NRF_CRC == 1 ? 0b1000 : NRF_CRC == 2 ? 0b1100 : 0))); // Mask all interrupts
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_SETUP_RETR, NRF_ESB ? 0x11 : 0); // Automatic Retransmission
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_EN_AA, NRF_AA_OFF || !NRF_ESB ? 0 : 0x3F); // Auto acknowledgement
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_FEATURE, NRF_DPL ? 4+1 : 1); // Enables the W_TX_PAYLOAD_NOACK command, Disable Payload with ACK, set Dynamic Payload
|
|
|
+ nrf24_set_maclen(nrf24_HANDLE, addrs.addr_len);
|
|
|
+ for(int i = 0; i < addrs.addr_len; i++) addr[i] = addrs.addr_P0[addrs.addr_len - i - 1];
|
|
|
+ nrf24_write_buf_reg(nrf24_HANDLE, REG_RX_ADDR_P0, addr, addrs.addr_len);
|
|
|
+ uint8_t tmp[5];
|
|
|
+ nrf24_read_reg(nrf24_HANDLE, REG_RX_ADDR_P0, tmp, addrs.addr_len);
|
|
|
+ NRF_ERROR = memcmp(addr, tmp, addrs.addr_len) != 0;
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, RX_PW_P0, NRF_Payload);
|
|
|
+ if(addrs.addr_count > 0) nrf24_write_reg(nrf24_HANDLE, REG_DYNPD, NRF_DPL ? (1<<0) : 0); // Enable dynamic payload reg
|
|
|
+ if(addrs.addr_count > 1) {
|
|
|
+ for(int i = 0; i < addrs.addr_len; i++) addr[i] = addrs.addr_P1[addrs.addr_len - i - 1];
|
|
|
+ nrf24_write_buf_reg(nrf24_HANDLE, REG_RX_ADDR_P1, addr, addrs.addr_len);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, RX_PW_P1, NRF_Payload);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_DYNPD, NRF_DPL ? (1<<1) : 0);
|
|
|
+ erx_addr |= (1<<1); // Enable RX_P1
|
|
|
+ } else nrf24_write_reg(nrf24_HANDLE, RX_PW_P1, 0);
|
|
|
+ if(addrs.addr_count > 2) {
|
|
|
+ nrf24_write_buf_reg(nrf24_HANDLE, REG_RX_ADDR_P2, &addrs.addr_P2, 1);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, RX_PW_P2, NRF_Payload);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_DYNPD, NRF_DPL ? (1<<2) : 0);
|
|
|
+ erx_addr |= (1<<2); // Enable RX_P2
|
|
|
+ } else nrf24_write_reg(nrf24_HANDLE, RX_PW_P2, 0);
|
|
|
+ if(addrs.addr_count > 3) {
|
|
|
+ nrf24_write_buf_reg(nrf24_HANDLE, REG_RX_ADDR_P3, &addrs.addr_P3, 1);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, RX_PW_P3, NRF_Payload);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_DYNPD, NRF_DPL ? (1<<3) : 0);
|
|
|
+ erx_addr |= (1<<3); // Enable RX_P3
|
|
|
+ } else nrf24_write_reg(nrf24_HANDLE, RX_PW_P3, 0);
|
|
|
+ if(addrs.addr_count > 4) {
|
|
|
+ nrf24_write_buf_reg(nrf24_HANDLE, REG_RX_ADDR_P4, &addrs.addr_P4, 1);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, RX_PW_P4, NRF_Payload);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_DYNPD, NRF_DPL ? (1<<4) : 0);
|
|
|
+ erx_addr |= (1<<4); // Enable RX_P4
|
|
|
+ } else nrf24_write_reg(nrf24_HANDLE, RX_PW_P4, 0);
|
|
|
+ if(addrs.addr_count > 5) {
|
|
|
+ nrf24_write_buf_reg(nrf24_HANDLE, REG_RX_ADDR_P5, &addrs.addr_P5, 1);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, RX_PW_P5, NRF_Payload);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_DYNPD, NRF_DPL ? (1<<5) : 0);
|
|
|
+ erx_addr |= (1<<5); // Enable RX_P5
|
|
|
+ } else nrf24_write_reg(nrf24_HANDLE, RX_PW_P5, 0);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_STATUS, 0x70); // clear interrupts
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_EN_RXADDR, erx_addr);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_RF_CH, NRF_channel);
|
|
|
+ nrf24_write_reg(nrf24_HANDLE, REG_RF_SETUP, NRF_rate);
|
|
|
+ nrf24_flush_rx(nrf24_HANDLE);
|
|
|
+ nrf24_flush_tx(nrf24_HANDLE);
|
|
|
+ nrf24_set_idle(nrf24_HANDLE);
|
|
|
+}
|
|
|
+
|
|
|
+static void start_scanning()
|
|
|
+{
|
|
|
+ prepare_nrf24();
|
|
|
+ if(NRF_ERROR) {
|
|
|
+ FURI_LOG_E(TAG, "NRF R/W ERROR!");
|
|
|
+ return;
|
|
|
+ }
|
|
|
+ nrf24_set_rx_mode(nrf24_HANDLE);
|
|
|
+ start_time = furi_get_tick();
|
|
|
+ FURI_LOG_D(TAG, "Start scan: Ch=%d Rate=%d", NRF_channel, NRF_rate);
|
|
|
+}
|
|
|
+
|
|
|
+bool nrf24_read_newpacket() {
|
|
|
+ if(APP->log_arr == NULL) return false;
|
|
|
+ bool found = false;
|
|
|
+ uint8_t packetsize;
|
|
|
+ uint8_t packet[32] = {0};
|
|
|
+ uint8_t *ptr = APP->log_arr + log_arr_idx * LOG_REC_SIZE;
|
|
|
+ uint8_t status = nrf24_rxpacket(nrf24_HANDLE, ptr + 1, &packetsize, !NRF_DPL);
|
|
|
+ if(status & RX_DR) {
|
|
|
+ *ptr = ((packetsize & 0x1F) << 3) | ((status >> 1) & 7); // payload size + pipe #
|
|
|
+ if(packetsize < 32) memset(ptr + packetsize + 1, 0, 32 - packetsize);
|
|
|
+ if(log_arr_idx < MAX_LOG_RECORDS - 1) {
|
|
|
+ log_arr_idx++;
|
|
|
+ } else {
|
|
|
+ if(log_to_file == 1 || log_to_file == 2) {
|
|
|
+ write_to_log_file(APP->storage, false);
|
|
|
+ clear_log();
|
|
|
+ } else {
|
|
|
+ memmove(APP->log_arr, APP->log_arr + LOG_REC_SIZE, log_arr_idx * LOG_REC_SIZE);
|
|
|
+ }
|
|
|
+ }
|
|
|
+ FURI_LOG_D(TAG, "Found packet #%d pipe %d", log_arr_idx, (status >> 1) & 7);
|
|
|
+ notification_message(APP->notification, &sequence_blink_white_100);
|
|
|
+ found = true;
|
|
|
+ }
|
|
|
+ return found;
|
|
|
+}
|
|
|
+
|
|
|
+bool nrf24_send_packet()
|
|
|
+{
|
|
|
+ if(log_arr_idx == 0) return false;
|
|
|
+ if(!what_to_do) prepare_nrf24();
|
|
|
+ last_packet_send_st = nrf24_txpacket(nrf24_HANDLE, APP->log_arr + view_log_arr_idx * LOG_REC_SIZE + 1, 32, false);
|
|
|
+ last_packet_send = view_log_arr_idx;
|
|
|
+ notification_message(APP->notification, last_packet_send_st ? &sequence_blink_blue_100 : &sequence_blink_red_100);
|
|
|
+ if(what_to_do) start_scanning();
|
|
|
+ return last_packet_send_st;
|
|
|
+}
|
|
|
+
|
|
|
+uint16_t calc_crc(uint32_t crc, uint8_t *ptr, uint8_t bitnum, uint16_t bits)
|
|
|
+{
|
|
|
+ //uint8_t bitnum = 7;
|
|
|
+ uint32_t crc_high, polynom;
|
|
|
+ if(view_log_decode_CRC == 2) {
|
|
|
+ crc_high = (1<<16);
|
|
|
+ polynom = 0x11021; // X^16+X^12+X^5+1
|
|
|
+ } else {
|
|
|
+ crc_high = (1<<8);
|
|
|
+ polynom = 0x107; // x^8+x^2+x^1+1
|
|
|
+ }
|
|
|
+ while(bits--) {
|
|
|
+ crc <<= 1;
|
|
|
+ if(((crc & crc_high) != 0) ^ ((*ptr >> bitnum) & 1)) crc ^= polynom;
|
|
|
+ if(bitnum == 0) {
|
|
|
+ ptr++;
|
|
|
+ bitnum = 7;
|
|
|
+ } else bitnum--;
|
|
|
+ }
|
|
|
+ return crc & (view_log_decode_CRC == 2 ? 0xFFFF : 0xFF);
|
|
|
+}
|
|
|
+
|
|
|
+// shifted 1 bit right
|
|
|
+uint16_t get_shifted_crc(uint8_t *pcrc)
|
|
|
+{
|
|
|
+ uint16_t crc = ((uint8_t)(*pcrc << 1)) | (*(pcrc+1) >> 7);
|
|
|
+ if(view_log_decode_CRC == 2) {
|
|
|
+ crc = (crc << 8) | (((uint8_t)(*(pcrc+1) << 1))) | (*(pcrc+2) >> 7);
|
|
|
+ }
|
|
|
+ return crc;
|
|
|
+}
|
|
|
+
|
|
|
+static void render_callback(Canvas* const canvas, void* ctx) {
|
|
|
+ const PluginState* plugin_state = acquire_mutex((ValueMutex*)ctx, 25);
|
|
|
+ if(plugin_state == NULL) return;
|
|
|
+ //canvas_draw_frame(canvas, 0, 0, 128, 64); // border around the edge of the screen
|
|
|
+ if(what_doing == 0) {
|
|
|
+ canvas_set_font(canvas, FontSecondary); // 8x10 font
|
|
|
+ if(save_settings) snprintf(screen_buf, sizeof(screen_buf), "Save: %s", SETTINGS_FILENAME); // menu_selected = 0
|
|
|
+ else snprintf(screen_buf, sizeof(screen_buf), "Load: %s", addr_file_name);
|
|
|
+ canvas_draw_str(canvas, 10, 10, screen_buf);
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "Ch: %d", NRF_channel); // menu_selected = 1
|
|
|
+ canvas_draw_str(canvas, 10, 20, screen_buf);
|
|
|
+ if(NRF_ESB) {
|
|
|
+ strcpy(screen_buf, "ESB");
|
|
|
+ if(NRF_DPL) strcat(screen_buf, " DPL");
|
|
|
+ canvas_draw_str(canvas, 80, 20, screen_buf);
|
|
|
+ }
|
|
|
+ if(NRF_AA_OFF) { canvas_draw_str(canvas, 61, 20, "AA"); canvas_draw_line(canvas, 60, 19, 72, 11); }
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "Rate: %sbps", NRF_rate == 2 ? "2M" : NRF_rate == 1 ? "1M" : "250K"); // menu_selected = 2
|
|
|
+ canvas_draw_str(canvas, 10, 30, screen_buf);
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "Payload: %d", NRF_Payload);
|
|
|
+ canvas_draw_str(canvas, 80, 30, screen_buf);
|
|
|
+ strcpy(screen_buf, "Next Ch time: "); // menu_selected = 3
|
|
|
+ if(find_channel_period == 0) strcat(screen_buf, "off"); else snprintf(screen_buf + strlen(screen_buf), sizeof(screen_buf), "%d s", find_channel_period);
|
|
|
+ canvas_draw_str(canvas, 10, 40, screen_buf);
|
|
|
+ if(NRF_CRC == 1) canvas_draw_str(canvas, 95, 40, "CRC1");
|
|
|
+ else if(NRF_CRC == 2) canvas_draw_str(canvas, 95, 40, "CRC2");
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "Log: %s", log_to_file == 0 ? "No" : log_to_file == 1 ? "Yes" : log_to_file == 2 ? "Append" : "Clear");// menu_selected = 4
|
|
|
+ canvas_draw_str(canvas, 10, 50, screen_buf);
|
|
|
+ if(what_to_do) {
|
|
|
+ if(NRF_ERROR) snprintf(screen_buf, sizeof(screen_buf), "nRF24L01+ R/W ERROR!");
|
|
|
+ else snprintf(screen_buf, sizeof(screen_buf), "Start scan (pipes: %d)", addrs.addr_count); // menu_selected = 5
|
|
|
+ } else snprintf(screen_buf, sizeof(screen_buf), "View log (pipes: %d)", addrs.addr_count);
|
|
|
+ canvas_draw_str(canvas, 10, 60, screen_buf);
|
|
|
+ canvas_draw_str(canvas, 0, menu_selected * 10 + 10, ">");
|
|
|
+ } else if(what_doing == 1){
|
|
|
+ canvas_set_font(canvas, FontBatteryPercent); // 5x7 font, 9 lines
|
|
|
+ bool ch2 = false;
|
|
|
+ screen_buf[0] = '\0';
|
|
|
+ if(view_log_arr_x == 0) { strcat(screen_buf, " "); ch2 = true;
|
|
|
+ } else {
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "<%d", view_log_arr_x);
|
|
|
+ if(view_log_arr_x < VIEW_LOG_MAX_X) ch2 = true;
|
|
|
+ }
|
|
|
+ snprintf(screen_buf + strlen(screen_buf), sizeof(screen_buf), " %s ch: %d - %d.", what_to_do ? "Read" : "View", NRF_channel, log_arr_idx);
|
|
|
+ canvas_draw_str(canvas, 0, 7, screen_buf);
|
|
|
+ if(ch2) canvas_draw_str(canvas, 121, 7, ">");
|
|
|
+ if(log_arr_idx) {
|
|
|
+ if(view_log_arr_idx >= log_arr_idx) view_log_arr_idx = log_arr_idx - 1;
|
|
|
+ uint16_t page = view_log_arr_idx & ~7;
|
|
|
+ for(uint8_t i = 0; i < 8 && page + i < log_arr_idx; i++) {
|
|
|
+ screen_buf[0] = (view_log_arr_idx & 7) != i ? ' ' : last_packet_send != view_log_arr_idx ? '>' : last_packet_send_st ? '*' : '!';
|
|
|
+ screen_buf[1] = '\0';
|
|
|
+ char *ptr = (char*)APP->log_arr + (page + i) * LOG_REC_SIZE;
|
|
|
+ uint8_t dpl = *ptr++;
|
|
|
+ uint8_t pipe = dpl & 7;
|
|
|
+ dpl >>= 3;
|
|
|
+ if(dpl == 0) dpl = 32;
|
|
|
+ int count = dpl - view_log_arr_x;
|
|
|
+ uint8_t max_width = VIEW_LOG_WIDTH_B;
|
|
|
+ if(view_log_arr_x == 0) {
|
|
|
+ if(addrs.addr_count > 1) max_width--;
|
|
|
+ if(view_log_decode_PCF) max_width -= 2;
|
|
|
+ } else if(view_log_decode_PCF) max_width--;
|
|
|
+ if(count > max_width) count = max_width;
|
|
|
+ ptr += view_log_arr_x;
|
|
|
+ uint8_t *crcptr = NULL;
|
|
|
+ static uint16_t prev_addr_CRC;
|
|
|
+ static int8_t prev_pipe = -1;
|
|
|
+ if(count > 0) {
|
|
|
+ if(view_log_decode_CRC) {
|
|
|
+ uint8_t *pcrc = APP->log_arr + (page + i) * LOG_REC_SIZE + 1;
|
|
|
+ uint16_t crc;
|
|
|
+ if(prev_pipe == pipe) crc = prev_addr_CRC;
|
|
|
+ } else {
|
|
|
+ crc = view_log_decode_CRC == 2 ? 0xFFFF : 0xFF;
|
|
|
+ if(pipe <= 1) crc = calc_crc(crc, pipe == 0 ? addrs.addr_P0 : addrs.addr_P1, 7, addrs.addr_len * 8);
|
|
|
+ else {
|
|
|
+ crc = calc_crc(crc, addrs.addr_P1, 7, (addrs.addr_len - 1) * 8);
|
|
|
+ crc = calc_crc(crc, pipe == 2 ? &addrs.addr_P2 : pipe == 3 ? &addrs.addr_P3 : pipe == 4 ? &addrs.addr_P4 : &addrs.addr_P5, 7, 8);
|
|
|
+ }
|
|
|
+ prev_addr_CRC = crc;
|
|
|
+ prev_pipe = pipe;
|
|
|
+ }
|
|
|
+ if(view_log_decode_PCF) {
|
|
|
+ crc = calc_crc(crc, pcrc++, 7, 9);
|
|
|
+ if(crc == get_shifted_crc(pcrc)) crcptr = pcrc;
|
|
|
+
|
|
|
+if(xxx != view_log_arr_idx && view_log_arr_idx == (page + i)) FURI_LOG_D(TAG, ">> %02X %02X. CRC: %04X == %04X", *pcrc, *(pcrc+1), crc, get_shifted_crc(pcrc));
|
|
|
+
|
|
|
+
|
|
|
+ if(crcptr == NULL) {
|
|
|
+ for(int8_t j = 0; j < (int8_t)dpl - view_log_decode_CRC - 1; j++) {
|
|
|
+ crc = calc_crc(crc, pcrc++, 6, 8);
|
|
|
+
|
|
|
+
|
|
|
+if(xxx != view_log_arr_idx && view_log_arr_idx == (page + i)) FURI_LOG_D(TAG, "CRC: %04X == %04X", crc, get_shifted_crc(pcrc));
|
|
|
+
|
|
|
+
|
|
|
+ if(crc == get_shifted_crc(pcrc)) {
|
|
|
+ crcptr = pcrc;
|
|
|
+ break;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ }
|
|
|
+ } else {
|
|
|
+ for(int8_t j = 0; j < (int8_t)dpl - view_log_decode_CRC; j++) {
|
|
|
+ crc = calc_crc(crc, pcrc++, 7, 8);
|
|
|
+ if((view_log_decode_CRC == 1 && crc == *pcrc) || (view_log_decode_CRC == 2 && crc == ((*pcrc<<8) | *(pcrc+1)))) {
|
|
|
+ crcptr = pcrc;
|
|
|
+ break;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ }
|
|
|
+
|
|
|
+if(xxx != view_log_arr_idx && view_log_arr_idx == (page + i)) xxx = view_log_arr_idx;
|
|
|
+
|
|
|
+ }
|
|
|
+ if(max_width < VIEW_LOG_WIDTH_B) {
|
|
|
+ snprintf(screen_buf + 1, 10, "%X-", pipe);
|
|
|
+ if(view_log_decode_PCF) {
|
|
|
+ snprintf(screen_buf + strlen(screen_buf), 10, "%02X%01X-", *ptr >> 2, ((*ptr & 3) << 1) | (*(ptr+1) >> 7));
|
|
|
+ }
|
|
|
+ }
|
|
|
+ if(view_log_decode_PCF) add_to_str_hex_bytes_shift_9b(screen_buf, ptr, count); else add_to_str_hex_bytes(screen_buf, ptr, count);
|
|
|
+ }
|
|
|
+ uint8_t y = 14 + i * 7;
|
|
|
+ canvas_draw_str(canvas, 3 * 5, y, screen_buf);
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "%d%c", page + i + 1, crcptr ? ':' : '.');
|
|
|
+ canvas_draw_str(canvas, 0, y, screen_buf);
|
|
|
+ if(crcptr && crcptr > (uint8_t*)ptr && crcptr - (uint8_t*)ptr < count) {
|
|
|
+ uint8_t x = 3 + crcptr - (uint8_t*)ptr;
|
|
|
+ if(max_width < VIEW_LOG_WIDTH_B) x++;
|
|
|
+ if(view_log_decode_PCF) x += 2;
|
|
|
+ canvas_draw_str(canvas, x * 5, y, view_log_decode_CRC == 2 ? "____" : "__");
|
|
|
+ }
|
|
|
+ }
|
|
|
+ }
|
|
|
+ } else {
|
|
|
+ canvas_set_font(canvas, FontBatteryPercent); // 5x7 font
|
|
|
+ if(addrs.addr_count > 0) {
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "P0: ");
|
|
|
+ add_to_str_hex_bytes(screen_buf, (char*)addrs.addr_P0, addrs.addr_len);
|
|
|
+ canvas_draw_str(canvas, 0, 1 * 7, screen_buf);
|
|
|
+ }
|
|
|
+ if(addrs.addr_count > 1) {
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "P1: ");
|
|
|
+ add_to_str_hex_bytes(screen_buf, (char*)addrs.addr_P1, addrs.addr_len);
|
|
|
+ canvas_draw_str(canvas, 0, 2 * 7, screen_buf);
|
|
|
+ }
|
|
|
+ if(addrs.addr_count > 2) {
|
|
|
+ canvas_draw_str(canvas, 0, 3 * 7, "P2: ");
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "%02X", addrs.addr_P2);
|
|
|
+ canvas_draw_str(canvas, (4 + (addrs.addr_len - 1) * 2) * 5, 3 * 7, screen_buf);
|
|
|
+ }
|
|
|
+ if(addrs.addr_count > 3) {
|
|
|
+ canvas_draw_str(canvas, 0, 4 * 7, "P3: ");
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "%02X", addrs.addr_P3);
|
|
|
+ canvas_draw_str(canvas, (4 + (addrs.addr_len - 1) * 2) * 5, 4 * 7, screen_buf);
|
|
|
+ }
|
|
|
+ if(addrs.addr_count > 4) {
|
|
|
+ canvas_draw_str(canvas, 0, 5 * 7, "P4: ");
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "%02X", addrs.addr_P4);
|
|
|
+ canvas_draw_str(canvas, (4 + (addrs.addr_len - 1) * 2) * 5, 5 * 7, screen_buf);
|
|
|
+ }
|
|
|
+ if(addrs.addr_count > 5) {
|
|
|
+ canvas_draw_str(canvas, 0, 6 * 7, "P5: ");
|
|
|
+ snprintf(screen_buf, sizeof(screen_buf), "%02X", addrs.addr_P5);
|
|
|
+ canvas_draw_str(canvas, (4 + (addrs.addr_len - 1) * 2) * 5, 6 * 7, screen_buf);
|
|
|
+ }
|
|
|
+ screen_buf[0] = 'v';
|
|
|
+ strcpy(screen_buf + 1, VERSION);
|
|
|
+ canvas_draw_str(canvas, 108, 7, screen_buf);
|
|
|
+ if(view_log_decode_PCF || view_log_decode_CRC) {
|
|
|
+ strcpy(screen_buf, "Decode: ");
|
|
|
+ if(view_log_decode_PCF) strcat(screen_buf, "PCF ");
|
|
|
+ if(view_log_decode_CRC == 1) strcat(screen_buf, "CRC1");
|
|
|
+ else if(view_log_decode_CRC == 2) strcat(screen_buf, "CRC2");
|
|
|
+ canvas_draw_str(canvas, 0, 64, screen_buf);
|
|
|
+ }
|
|
|
+ }
|
|
|
+ release_mutex((ValueMutex*)ctx, plugin_state);
|
|
|
+}
|
|
|
+
|
|
|
+int32_t nrf24scan_app(void* p) {
|
|
|
+ UNUSED(p);
|
|
|
+ APP = malloc(sizeof(Nrf24Scan));
|
|
|
+ APP->event_queue = furi_message_queue_alloc(8, sizeof(PluginEvent));
|
|
|
+ APP->plugin_state = malloc(sizeof(PluginState));
|
|
|
+ ValueMutex state_mutex;
|
|
|
+ if(!init_mutex(&state_mutex, APP->plugin_state, sizeof(PluginState))) {
|
|
|
+ furi_message_queue_free(APP->event_queue);
|
|
|
+ FURI_LOG_E(TAG, "cannot create mutex");
|
|
|
+ free(APP->plugin_state);
|
|
|
+ return 255;
|
|
|
+ }
|
|
|
+ memset((uint8_t*)&addrs, 0, sizeof(addrs));
|
|
|
+ nrf24_init();
|
|
|
+
|
|
|
+ // Set system callbacks
|
|
|
+ APP->view_port = view_port_alloc();
|
|
|
+ view_port_draw_callback_set(APP->view_port, render_callback, &state_mutex);
|
|
|
+ view_port_input_callback_set(APP->view_port, input_callback, APP->event_queue);
|
|
|
+
|
|
|
+ // Open GUI and register view_port
|
|
|
+ APP->gui = furi_record_open(RECORD_GUI);
|
|
|
+ gui_add_view_port(APP->gui, APP->view_port, GuiLayerFullscreen);
|
|
|
+ APP->notification = furi_record_open(RECORD_NOTIFICATION);
|
|
|
+ APP->storage = furi_record_open(RECORD_STORAGE);
|
|
|
+ storage_common_mkdir(APP->storage, SCAN_APP_PATH_FOLDER);
|
|
|
+ Stream* file_stream = file_stream_alloc(APP->storage);
|
|
|
+ FuriString* path = furi_string_alloc();
|
|
|
+ furi_string_set(path, SCAN_APP_PATH_FOLDER);
|
|
|
+ furi_string_cat(path, "/");
|
|
|
+ furi_string_cat(path, SETTINGS_FILENAME);
|
|
|
+ if(file_stream_open(file_stream, furi_string_get_cstr(path), FSAM_READ, FSOM_OPEN_EXISTING)) {
|
|
|
+ uint8_t err = load_settings_file(file_stream);
|
|
|
+ if(!err) strcpy(addr_file_name, SETTINGS_FILENAME); else snprintf(addr_file_name, sizeof(addr_file_name), "LOAD ERROR#%d", err);
|
|
|
+ } else {
|
|
|
+ strcpy(addr_file_name, "NONE");
|
|
|
+ }
|
|
|
+ file_stream_close(file_stream);
|
|
|
+ stream_free(file_stream);
|
|
|
+ furi_string_free(path);
|
|
|
+ allocate_log_array();
|
|
|
+
|
|
|
+ PluginEvent event;
|
|
|
+ for(bool processing = true; processing;) {
|
|
|
+ FuriStatus event_status = furi_message_queue_get(APP->event_queue, &event, 100);
|
|
|
+ PluginState* plugin_state = (PluginState*)acquire_mutex_block(&state_mutex);
|
|
|
+
|
|
|
+ if(event_status == FuriStatusOk) {
|
|
|
+ // press events
|
|
|
+ if(event.type == EventTypeKey) {
|
|
|
+ //FURI_LOG_D(TAG, "Key: %d Type: %d Sec: %u", event.input.key, event.input.type, event.input.sequence);
|
|
|
+ switch(event.input.key) {
|
|
|
+ case InputKeyUp:
|
|
|
+ if(event.input.type == InputTypePress || event.input.type == InputTypeRepeat) {
|
|
|
+ if(what_doing == 0) {
|
|
|
+ if(menu_selected > 0) menu_selected--; else menu_selected = menu_selected_max;
|
|
|
+ } else if(what_doing == 1) {
|
|
|
+ view_log_arr_idx -= event.input.type == InputTypeRepeat ? 10 : 1;
|
|
|
+ if(view_log_arr_idx >= log_arr_idx) view_log_arr_idx = 0;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ break;
|
|
|
+ case InputKeyDown:
|
|
|
+ if(event.input.type == InputTypePress || event.input.type == InputTypeRepeat) {
|
|
|
+ if(what_doing == 0) {
|
|
|
+ if(menu_selected < menu_selected_max) menu_selected++; else menu_selected = 0;
|
|
|
+ } else if(what_doing == 1) {
|
|
|
+ view_log_arr_idx += event.input.type == InputTypeRepeat ? 10 : 1;
|
|
|
+ if(view_log_arr_idx >= log_arr_idx) view_log_arr_idx = log_arr_idx - 1;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ break;
|
|
|
+ case InputKeyLeft:
|
|
|
+ if(event.input.type == InputTypePress || event.input.type == InputTypeRepeat) {
|
|
|
+ if(what_doing == 0) {
|
|
|
+ switch(menu_selected) {
|
|
|
+ case Menu_enter_channel:
|
|
|
+ NRF_channel -= event.input.type == InputTypeRepeat ? 10 : 1;
|
|
|
+ if(NRF_channel > MAX_CHANNEL) NRF_channel = MAX_CHANNEL;
|
|
|
+ break;
|
|
|
+ case Menu_enter_rate:
|
|
|
+ NRF_Payload -= event.input.type == InputTypeRepeat ? 10 : 1;
|
|
|
+ if(NRF_Payload == 0 || NRF_Payload > 32) NRF_Payload = 32;
|
|
|
+ break;
|
|
|
+ case Menu_enter_scan_period:
|
|
|
+ find_channel_period -= event.input.type == InputTypeRepeat ? 10 : 1;
|
|
|
+ if(find_channel_period < 0) find_channel_period = 0;
|
|
|
+ break;
|
|
|
+ case Menu_log:
|
|
|
+ if(--log_to_file < -1) log_to_file = 2;
|
|
|
+ break;
|
|
|
+ case Menu_ok:
|
|
|
+ what_to_do = !what_to_do;
|
|
|
+ break;
|
|
|
+ }
|
|
|
+ } else if(what_doing == 1) {
|
|
|
+ if(view_log_arr_x > 0) view_log_arr_x--;
|
|
|
+ } else if(what_doing == 2) {
|
|
|
+ //if(NRF_ESB == 0)
|
|
|
+ view_log_decode_PCF ^= 1;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ break;
|
|
|
+ case InputKeyRight:
|
|
|
+ if(event.input.type == InputTypePress || event.input.type == InputTypeRepeat) {
|
|
|
+ if(what_doing == 0) {
|
|
|
+ switch(menu_selected) {
|
|
|
+ case Menu_open_file:
|
|
|
+ save_settings ^= 1;
|
|
|
+ break;
|
|
|
+ case Menu_enter_channel:
|
|
|
+ NRF_channel += event.input.type == InputTypeRepeat ? 10 : 1;
|
|
|
+ if(NRF_channel > MAX_CHANNEL) NRF_channel = 0;
|
|
|
+ break;
|
|
|
+ case Menu_enter_rate:
|
|
|
+ NRF_Payload += event.input.type == InputTypeRepeat ? 10 : 1;
|
|
|
+ if(NRF_Payload == 0 || NRF_Payload > 32) NRF_Payload = 32;
|
|
|
+ break;
|
|
|
+ case Menu_enter_scan_period:
|
|
|
+ find_channel_period += event.input.type == InputTypeRepeat ? 10 : 1;
|
|
|
+ break;
|
|
|
+ case Menu_log:
|
|
|
+ if(++log_to_file > 2) log_to_file = -1;
|
|
|
+ break;
|
|
|
+ case Menu_ok:
|
|
|
+ what_to_do = !what_to_do;
|
|
|
+ break;
|
|
|
+ }
|
|
|
+ } else if(what_doing == 1) {
|
|
|
+ if(view_log_arr_x < VIEW_LOG_MAX_X) view_log_arr_x++;
|
|
|
+ } else if(what_doing == 2) {
|
|
|
+ if(++view_log_decode_CRC > 2) view_log_decode_CRC = 0;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ break;
|
|
|
+ case InputKeyOk:
|
|
|
+ if(event.input.type == InputTypePress) {
|
|
|
+ if(what_doing == 0) {
|
|
|
+ switch(menu_selected) {
|
|
|
+ case Menu_open_file:
|
|
|
+ if(save_settings) {
|
|
|
+ write_to_log_file(APP->storage, true);
|
|
|
+ } else {
|
|
|
+ file_stream = file_stream_alloc(APP->storage);
|
|
|
+ if(select_settings_file(file_stream)) {
|
|
|
+ uint8_t err = load_settings_file(file_stream);
|
|
|
+ if(!err) save_to_new_log = true; else snprintf(addr_file_name, sizeof(addr_file_name), "LOAD ERROR#%d", err);
|
|
|
+ file_stream_close(file_stream);
|
|
|
+ }
|
|
|
+ stream_free(file_stream);
|
|
|
+ }
|
|
|
+ break;
|
|
|
+ case Menu_enter_rate:
|
|
|
+ NRF_rate++;
|
|
|
+ if(NRF_rate > 2) NRF_rate = 0;
|
|
|
+ break;
|
|
|
+ case Menu_enter_scan_period:
|
|
|
+ if(++NRF_CRC > 2) NRF_CRC = 0;
|
|
|
+ break;
|
|
|
+ case Menu_ok:
|
|
|
+ if(what_to_do) {
|
|
|
+ if(addrs.addr_count) {
|
|
|
+ what_doing = 1;
|
|
|
+ if(log_to_file == -1) {
|
|
|
+ clear_log();
|
|
|
+ save_to_new_log = true;
|
|
|
+ } else if(log_to_file == 1) save_to_new_log = true;
|
|
|
+ start_scanning();
|
|
|
+ }
|
|
|
+ } else what_doing = 1;
|
|
|
+ key_press_seq_ok = event.input.sequence;
|
|
|
+ break;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ } else if(event.input.type == InputTypeLong) {
|
|
|
+ if(what_doing == 0) {
|
|
|
+ if(menu_selected == Menu_enter_channel) {
|
|
|
+ NRF_AA_OFF ^= 1;
|
|
|
+ key_press_seq_ok = event.input.sequence;
|
|
|
+ } else if(menu_selected == Menu_log) { // Log
|
|
|
+ if(log_arr_idx && (log_to_file == 1 || log_to_file == 2)) {
|
|
|
+ write_to_log_file(APP->storage, false);
|
|
|
+ clear_log();
|
|
|
+ }
|
|
|
+ }
|
|
|
+ } else if(what_doing == 1) {
|
|
|
+ what_doing = 2;
|
|
|
+ }
|
|
|
+ } else if(event.input.type == InputTypeRelease && key_press_seq_ok != event.input.sequence) {
|
|
|
+ if(what_doing == 0) {
|
|
|
+ if(menu_selected == Menu_enter_channel) {
|
|
|
+ if(NRF_ESB) {
|
|
|
+ if(NRF_DPL) NRF_DPL = NRF_ESB = 0; else NRF_DPL = 1;
|
|
|
+ } else NRF_ESB = 1;
|
|
|
+ //if(NRF_ESB) view_log_decode_PCF = 0;
|
|
|
+ }
|
|
|
+ } else if(what_doing == 1) { // Send
|
|
|
+ nrf24_send_packet();
|
|
|
+ }
|
|
|
+ key_press_seq_ok--;
|
|
|
+ }
|
|
|
+ break;
|
|
|
+ case InputKeyBack:
|
|
|
+ if(event.input.type == InputTypeLong) processing = false;
|
|
|
+ else if(event.input.type == InputTypeRelease) {
|
|
|
+ if(what_doing) what_doing--;
|
|
|
+ if(what_doing == 0) nrf24_set_idle(nrf24_HANDLE);;
|
|
|
+ }
|
|
|
+ break;
|
|
|
+ default:
|
|
|
+ break;
|
|
|
+ }
|
|
|
+ }
|
|
|
+ }
|
|
|
+ if(what_doing && what_to_do) {
|
|
|
+ nrf24_read_newpacket();
|
|
|
+ if(find_channel_period && furi_get_tick() - start_time >= (uint32_t)find_channel_period * 1000UL) {
|
|
|
+ if(++NRF_channel > MAX_CHANNEL) NRF_channel = 0;
|
|
|
+ start_scanning();
|
|
|
+ }
|
|
|
+ }
|
|
|
+
|
|
|
+ view_port_update(APP->view_port);
|
|
|
+ release_mutex(&state_mutex, plugin_state);
|
|
|
+ }
|
|
|
+ nrf24_set_idle(nrf24_HANDLE);
|
|
|
+ if(log_arr_idx && (log_to_file == 1 || log_to_file == 2)) {
|
|
|
+ write_to_log_file(APP->storage, false);
|
|
|
+ }
|
|
|
+ nrf24_deinit();
|
|
|
+
|
|
|
+ view_port_enabled_set(APP->view_port, false);
|
|
|
+ gui_remove_view_port(APP->gui, APP->view_port);
|
|
|
+ furi_record_close(RECORD_GUI);
|
|
|
+ furi_record_close(RECORD_NOTIFICATION);
|
|
|
+ furi_record_close(RECORD_STORAGE);
|
|
|
+ view_port_free(APP->view_port);
|
|
|
+ furi_message_queue_free(APP->event_queue);
|
|
|
+ free(APP->plugin_state);
|
|
|
+ if(APP->log_arr) free(APP->log_arr);
|
|
|
+ free(APP);
|
|
|
+ return 0;
|
|
|
+}
|
vad7
