README.md

flipperscope

To compile and install

cd flipperzero-firmware/applications_user
git clone https://github.com/anfractuosity/flipperscope.git
cd ..
./fbt DEBUG=1 VERBOSE=1 fap_scope
./fbt launch_app APPSRC=applications_user/flipperscope

Alternatively upload the scope.fap file in the binary folder of this repository to your flipper zero.

Provide signal to pin 16/PC0, with a voltage ranging from 0V to 2.5V and ground to pin 18/GND.

Press the 'ok' button (button in the centre of joypad) to pause/unpause the waveform display.

Demo showing three different waveform types from a signal generator.

Also see Derek Jamison's demonstration of this app as well as other interesting projects.

Measurements

  • Measures frequency of waveform in hertz
  • Measures voltage: min, max, Vpp

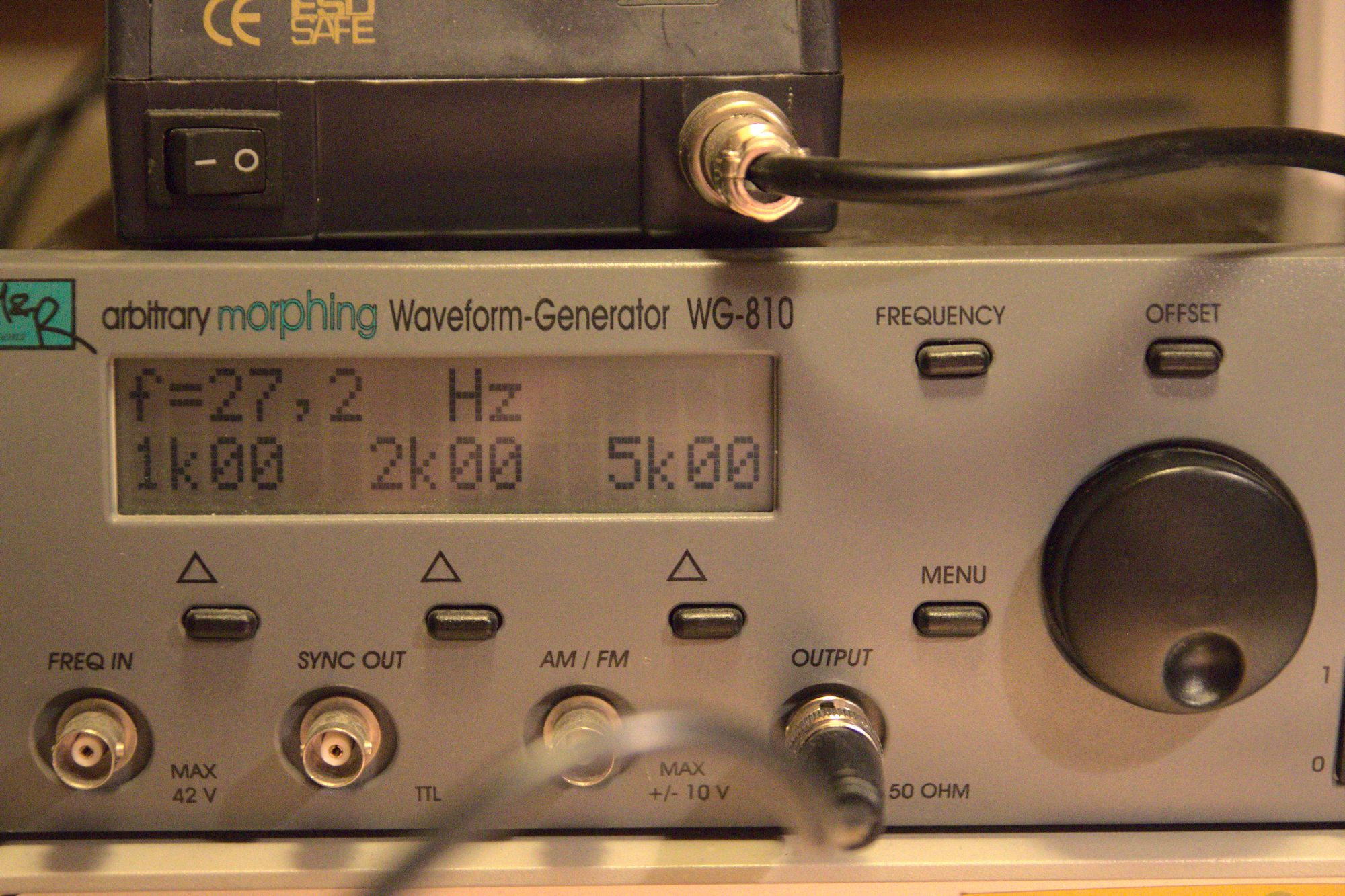

Signal Generator

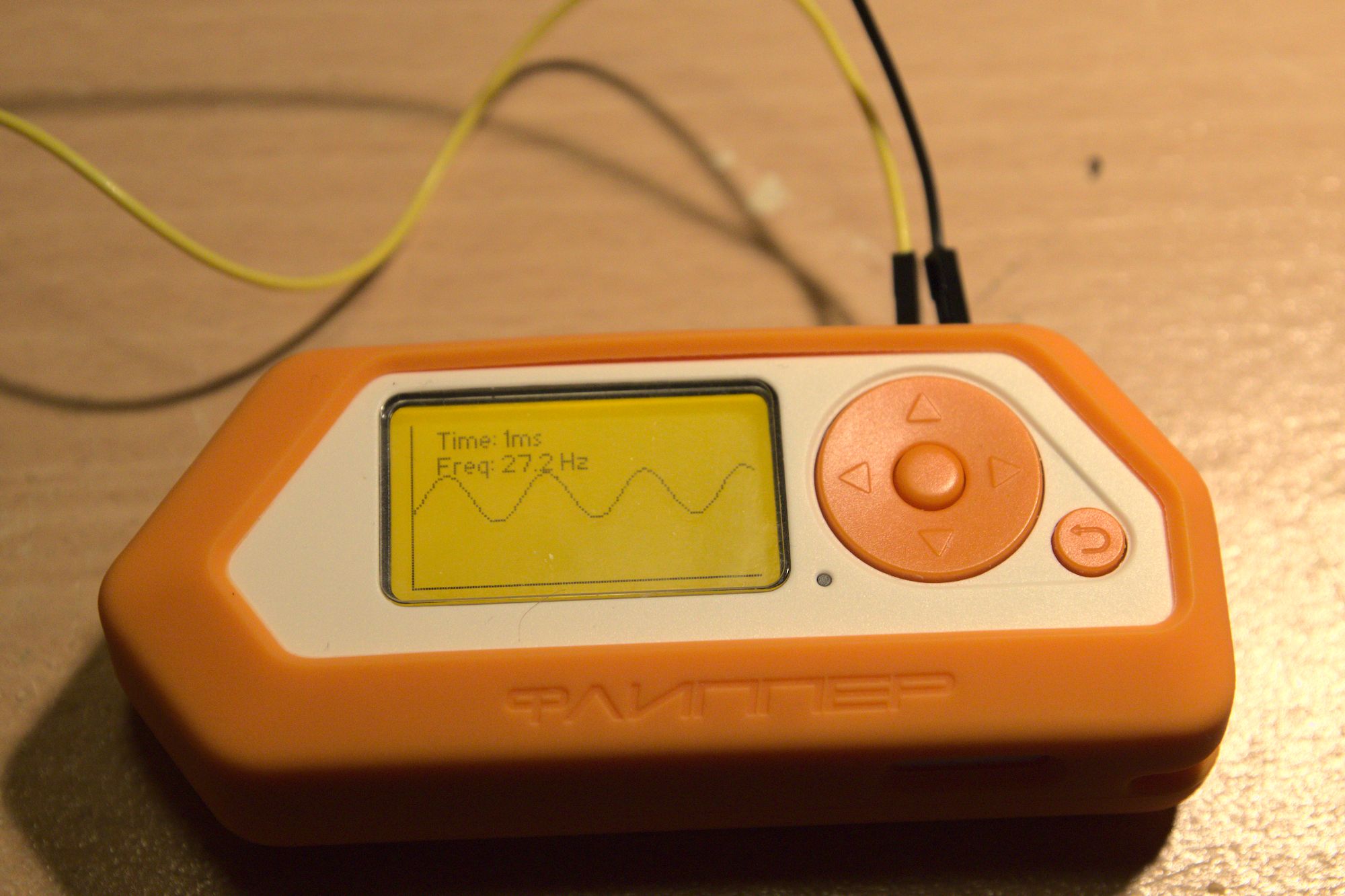

Flipper Zero running flipperscope

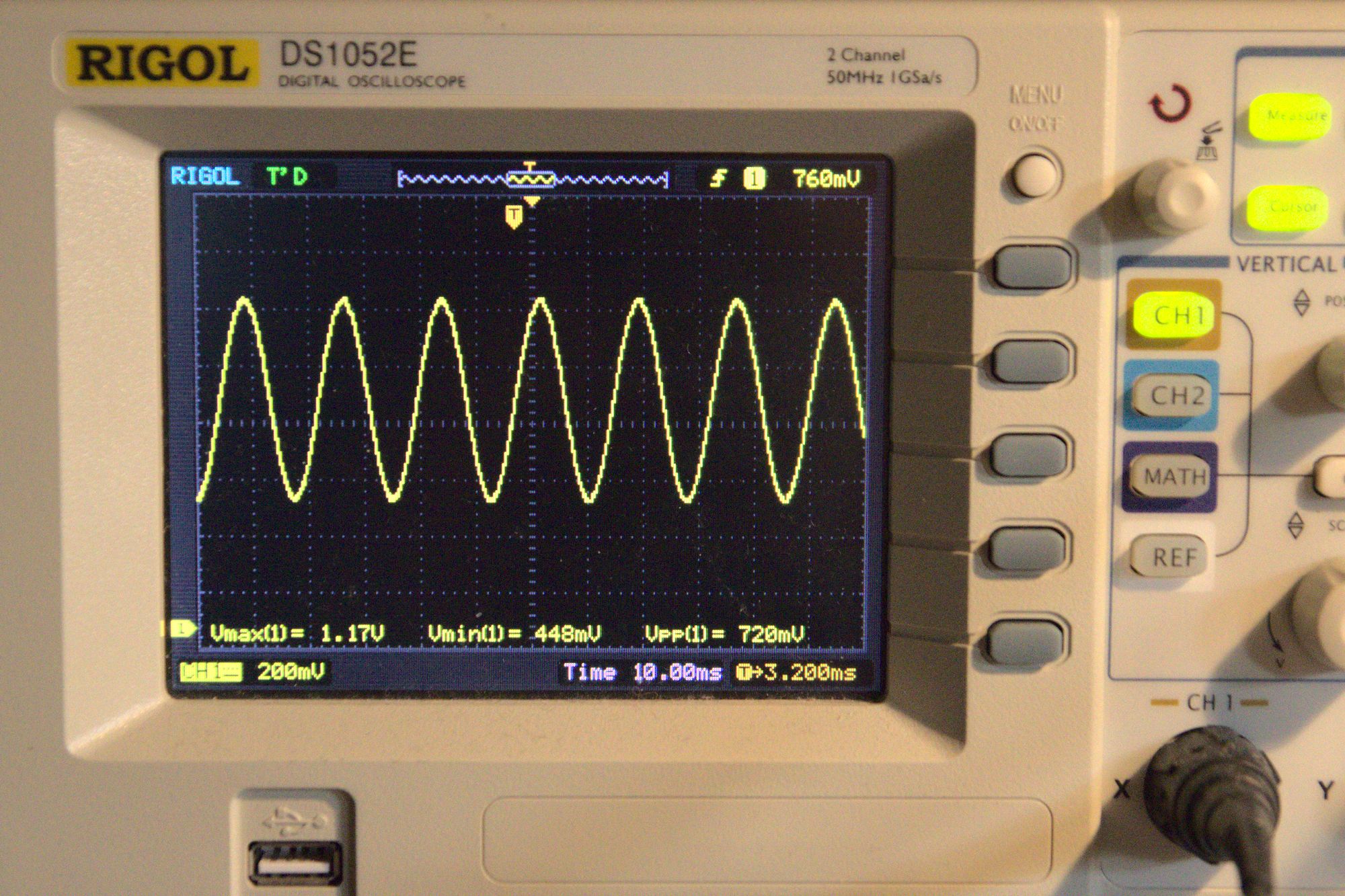

Rigol

Flipper Zero running flipperscope

To Do

  • Customisable input pin
  • Trigger type mode
  • FFT
  • ...

Inspiration
