Airmon for Flipper Zero

A simple Flipper Zero air quality monitoring application. It displays measured PM1.0/PM2.5/PM10 Particulate Matter concentrations and calculated Air Quality Index (AQI).

Hardware setup

Connect the Plantower PMS5003/PMS7003/PMS9003 sensor according to the wiring diagram below.

Flipper Pin	Sensor Pin
1 (5V)	1 (5V)
11 (GND)	2 (GND)
13 (TX)	4 (RX)
14 (RX)	5 (TX)

Building and installing

1. Clone airmon repository using git clone https://github.com/3cky/flipperzero-airmon command.
2. Install uFBT Flipper Build Tool.
3. Compile application running ufbt command in the cloned directory root.
4. Install and start airmon application on Flipper attached over USB using ufbt launch command.

Application controls

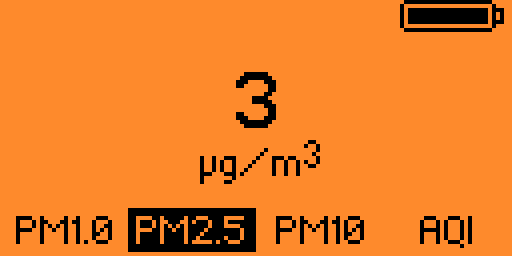

Use left/right arrows for PM/AQI display mode switching. Flipper LED will blink green once every successful sensor reads.

License

Airmon is available under the GPL 3 license. See the LICENSE file for more info.
