# ***GAME BOY*** PHOTO MALVEKE

<div align="center">

**Official** | **Unleashed** | **RogueMaster** | **Xtreme**
:- | :- | :- | :-
[![FlipC.org](https://flipc.org/EstebanFuentealba/MALVEKE-Flipper-Zero/badge?branch=main&root=flipper_companion_apps%2Fapplications%2Fexternal%2Fmalveke_gb_photo&firmware=official)](https://flipc.org/EstebanFuentealba/MALVEKE-Flipper-Zero?branch=main&root=flipper_companion_apps%2Fapplications%2Fexternal%2Fmalveke_gb_photo&firmware=official)|[![FlipC.org](https://flipc.org/EstebanFuentealba/MALVEKE-Flipper-Zero/badge?branch=main&root=flipper_companion_apps%2Fapplications%2Fexternal%2Fmalveke_gb_photo&firmware=unleashed)](https://flipc.org/EstebanFuentealba/MALVEKE-Flipper-Zero?branch=main&root=flipper_companion_apps%2Fapplications%2Fexternal%2Fmalveke_gb_photo&firmware=unleashed)|[![FlipC.org](https://flipc.org/EstebanFuentealba/MALVEKE-Flipper-Zero/badge?branch=main&root=flipper_companion_apps%2Fapplications%2Fexternal%2Fmalveke_gb_photo&firmware=roguemaster)](https://flipc.org/EstebanFuentealba/MALVEKE-Flipper-Zero?branch=main&root=flipper_companion_apps%2Fapplications%2Fexternal%2Fmalveke_gb_photo&firmware=roguemaster)|[![FlipC.org](https://flipc.org/EstebanFuentealba/MALVEKE-Flipper-Zero/badge?branch=main&root=flipper_companion_apps%2Fapplications%2Fexternal%2Fmalveke_gb_photo&firmware=xtreme)](https://flipc.org/EstebanFuentealba/MALVEKE-Flipper-Zero?branch=main&root=flipper_companion_apps%2Fapplications%2Fexternal%2Fmalveke_gb_photo&firmware=xtreme)
</div>
<br>

<p align='center'>
<a href="https://www.tindie.com/stores/efuentealba/?ref=offsite_badges&utm_source=sellers_efuentealba&utm_medium=badges&utm_campaign=badge_large"><img src="https://d2ss6ovg47m0r5.cloudfront.net/badges/tindie-larges.png" alt="I sell on Tindie" width="200" height="104"></a>
</p>

## Introduction

## Features
- Extract "large" photos of 4 colors (128x112) into .BMP format.
- Extract a single photo or batch extract all photos.
- Implement a Photo Viewer within Flipper Zero.
- Restore deleted photos.
- Modify the Color Palette.



## Instructions for use.

These instructions assume that you are starting at the Flipper Zero desktop. Otherwise, press the Back button until you are at the desktop.

- Press the `OK` button on the Flipper to open the main menu.
- Choose `Applications` from the menu.
- Choose `GPIO` from the submenu.

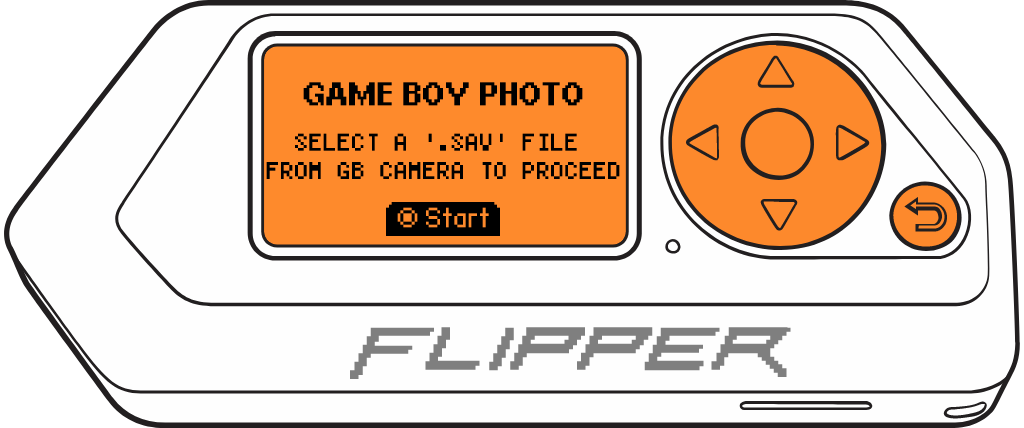

- Choose `[GB] GAME BOY PHOTO`

    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-01.png" width="400" />
        <br />
    </p>

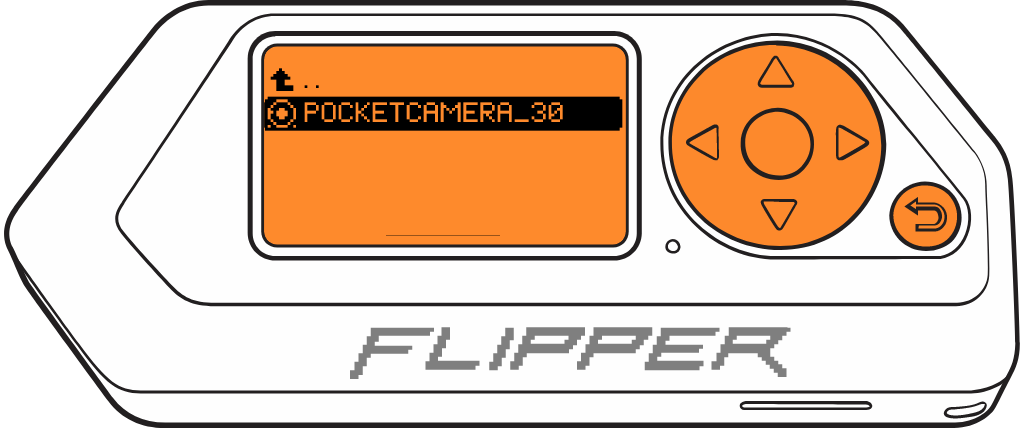

- For the next step, you'll need a `.SAV` file extracted from the GAME BOY Camera's RAM. If you don't have one, you can use the [**GAME BOY Cartridge (GB/GBC) MALVEKE**](/flipper_companion_apps/applications/external/malveke_gb_cartridge/README.md#instructions-for-use) app to save the RAM.

    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-02.png" width="400" />
        <br />
    </p>

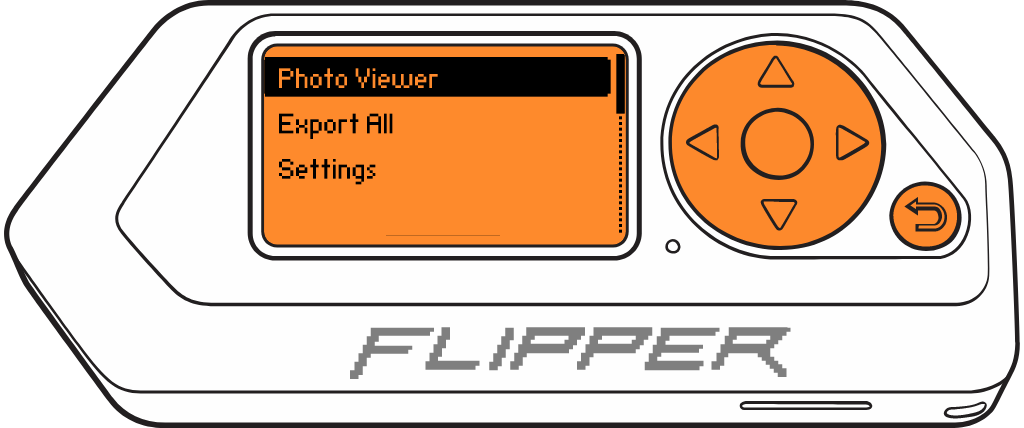

- Press the `OK` to enter to menu, After selecting the `.SAV` file, it will display the main menu.
    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-03.png" width="400" />
        <br />
    </p>
- **Photo Viewer**, a simple image viewer where you navigate between photos using `LEFT`/`RIGHT`. Since the images are 128x112, you scroll vertically using the `UP` and `DOWN` keys.

    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-04.png" width="400" />
        <br />
    </p>

    - You can save the currently displayed image to the Flipper Zero's SD card by pressing the `OK` button. The image will be saved in the `SD Card/apps_data/malveke/photos` folder.

    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-05.png" width="400" />
        <br />
    </p>

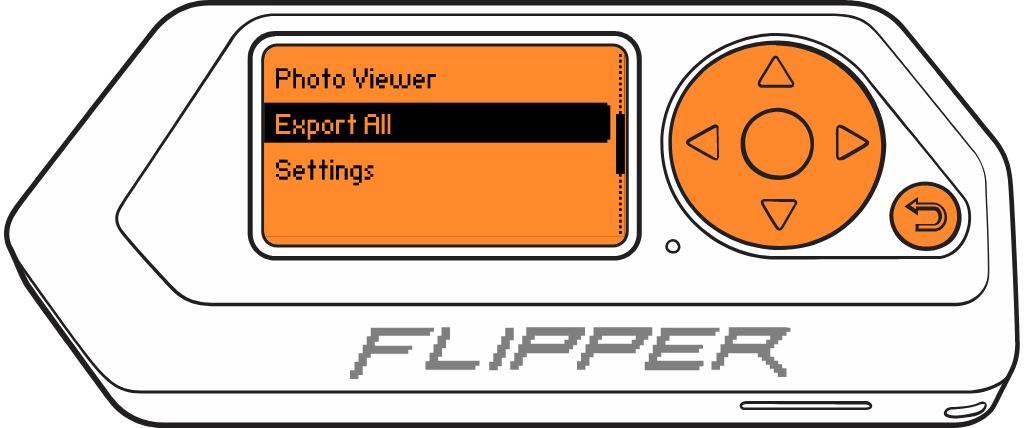

- **Export all** allows you to export all the images. Simply press the `OK` button and wait for the transfer of all images.
    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-06.png" width="400" />
        <br />
    </p>

    - The images will be saved in the `SD Card/apps_data/malveke/photos` folder.

    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-07.png" width="400" />
        <br />
    </p>

    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-08.png" width="400" />
        <br />
    </p>
- **Settings**: General application configurations.
    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-09.png" width="400" />
        <br />
    </p>

    - `Palette`: Configure the color palette; there are over 50 palettes to choose from. By default, it's set to Black and White.
    - `Info`: displays which images have been deleted.

    <p align='center'>
        <br />
        <img src="./docs/images/flipper-zero-flat-10.png" width="400" />
        <br />
    </p>

- Press the `Back` to back to principal menu.


## TODO
- [ ] Refactor Code
- [ ] Reading images directly from the cartridge (without opening a .SAV file).
- [ ] For BMP, avoid using memory to generate images; write directly to files.
- [ ] Exhibit and view images through a Web Server interface.
- [ ] Add frames to images.
- [ ] Configure dimension upscaling.
- [ ] Export to other file formats.
- [ ] Extract Game Faces.

## Acknowledgements
- [**@raphnet**](https://github.com/raphnet/gbcam2png/) command-line tool for extracting Game Boy Camera photos from a save ram (.sav) file and writing them in the PNG format.
- [**@HerrZatacke**](https://github.com/HerrZatacke/gb-printer-web/) Several ideas drawn from your Gameboy Printer Web.
