+# Flipper Air Mouse
|
|
|
+
|
|
|
+## Brief
|
|
|
+
|
|
|
+> "You can turn anything into an air mouse if you're brave enough"
|
|
|
+--- Piper, a.k.a. Pez
|
|
|
+
|
|
|
+Naturally, the quote above applies to [Flipper](https://flipperzero.one/) as well.
|
|
|
+
|
|
|
+## What?
|
|
|
+
|
|
|
+The app allows you to turn your Flipper into a USB or Bluetooth air mouse...
|
|
|
+
|
|
|
+Using it is really simple:
|
|
|
+ * Connect the Flipper via a USB cable and pick `USB`, or pick `Bluetooth` and pair it with your PC;
|
|
|
+ * Hold the Flipper in your hand with the buttons pointing towards the screen;
|
|
|
+ * Wave your Flipper like you don't care to move the cursor;
|
|
|
+ * Up button for Left mouse click;
|
|
|
+ * Down button for Right mouse click;
|
|
|
+ * Center button for Middle mouse click;
|
|
|
+ * Use calibration menu option if you notice significant drift (place your Flipper onto a level surface, make sure it doesn't move, run this option, wait 2 seconds, done).
|
|
|
+
|
|
|
+See early prototype [in action](https://www.youtube.com/watch?v=DdxAmmsYfMA).
|
|
|
+
|
|
|
+## Hardware
|
|
|
+
|
|
|

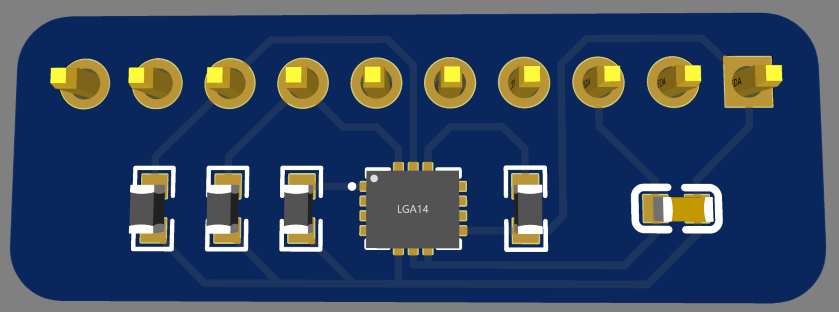

+Take a look into the [schematic](https://github.com/ginkage/FlippAirMouse/tree/main/schematic) folder for Gerber, BOM and CPL files, so you can order directly from JLCPCB.
|
|
|
+
|
|
|
+Original idea:
|
|
|
+
|
|
|
+
|
|
|
+Expectation:
|
|
|
+
|
|
|
+
|
|
|

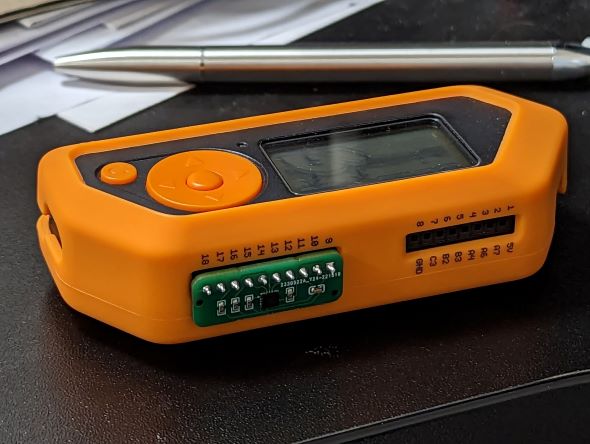

+Reality:
|
|
|
+
|
|
|
+
|
|
|
+
|
|
|
+## Software
|
|
|
+
|
|
|
+If you're familiar with Flipper applications, start in the firmware checkout folder and do the following:
|
|
|
+```
|
|
|
+cd applications/plugins
|
|
|
+git clone https://github.com/ginkage/FlippAirMouse
|
|
|
+cd ../..
|
|
|
+./fbt fap_air_mouse
|
|
|
+```
|
|
|
+If you're not familiar with those, just grab a `fap` file from Releases.
|
Ivan Podogov
