+# Flipper Zero Ethernet Troubleshooter
+
+This is a small helper that lets you connect your Flipper via RJ45 to your network
+You can then set the interface-mac and test if you can get an IP via DHCP and the ping addresses.
+
+## Prerequisites
+
+To get started you will need a specific module called the W5500 Lite with a chiop from WHIZnet Co., Ltd.
+You can find those modules on AliExpress etc. [Find Module here](https://www.google.com/search?q=WS5500+Ethernet)
+The second thing you will need is a proto-board for the Flipper Zero, which you can get [here](https://shop.flipperzero.one/products/proto-boards).
+
+## Assembly
+
+If you got those things, you can get started.
+You will need to solder the board yourself, but don't worry. It's not that complicated.
+First we will need to know the pinout of the W5500-Lite-Module.
+![w5500 pinout](docs/w5500-lite-pinout.png)

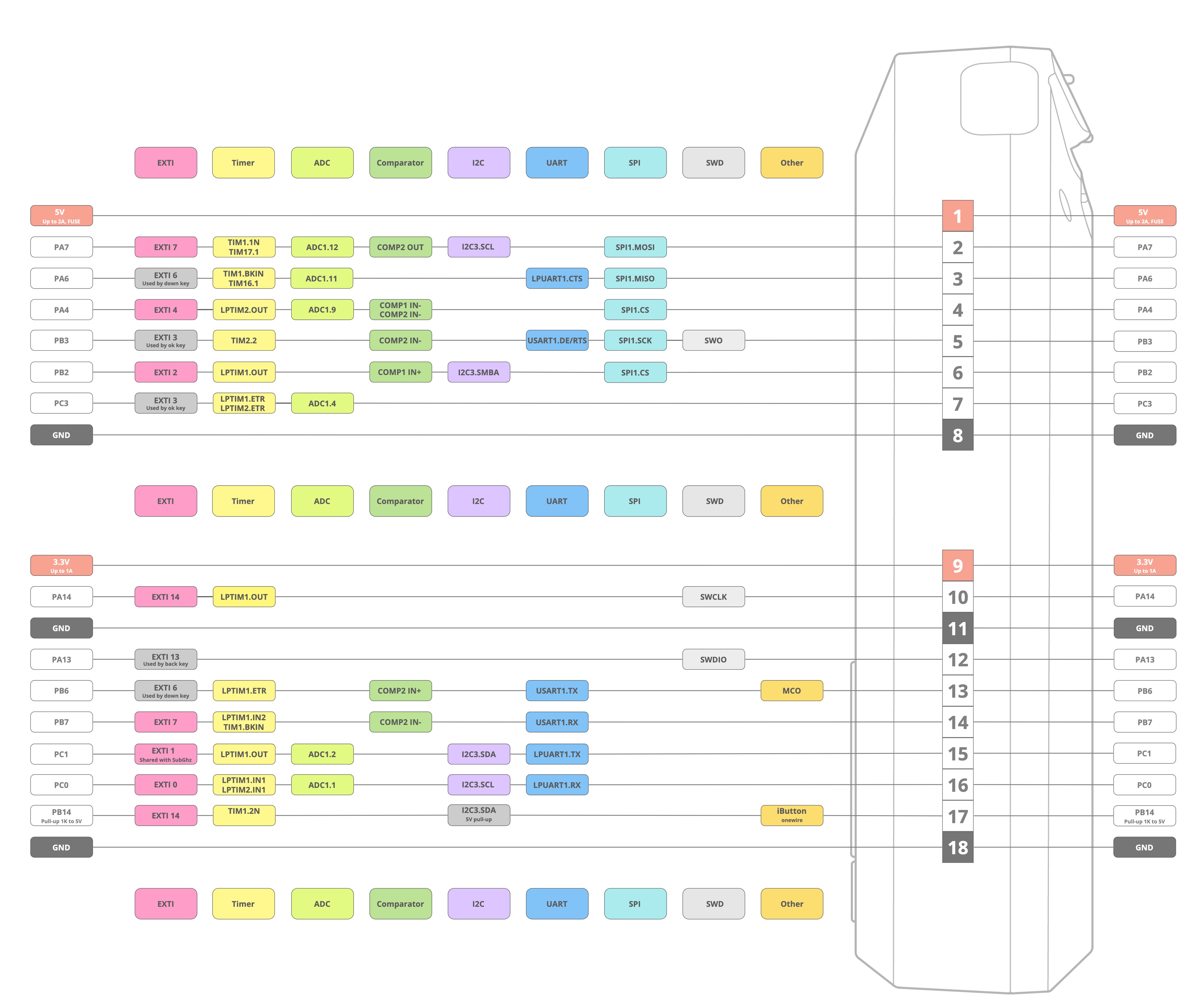

+here is the Flipper-Pinout to see where you will have to connect everything:
+![flipper pinout](docs/FlipperZeroPinout.jpg)
+and if you have correctly soldered you will end up with something like:
+![w5500 assebled board](docs/w5500-lite-assembled-top.jpg)
